Frame Brace Replacement
Frame Brace Replacement

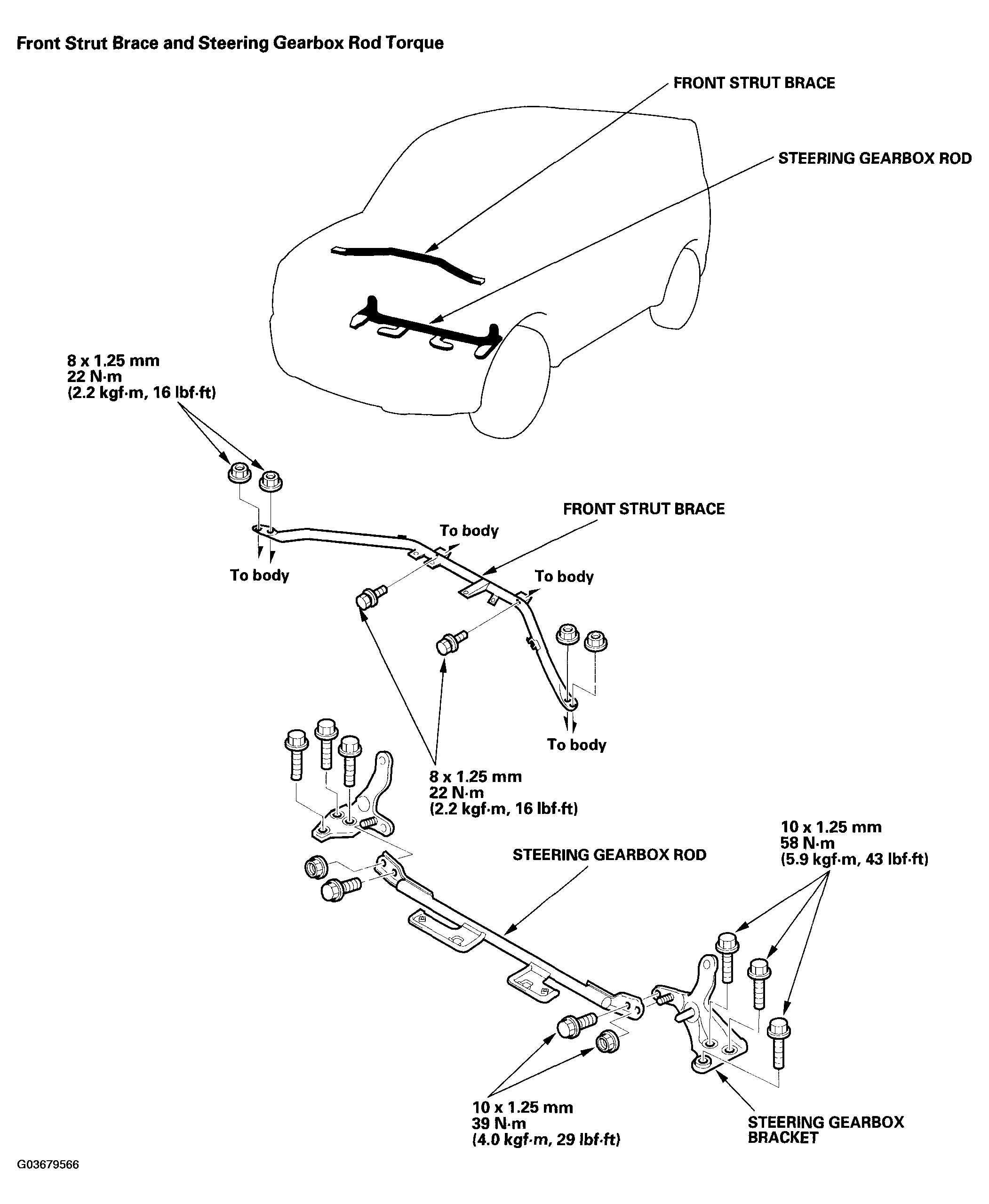

Fig 1: Replacing Frame Brace & Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
