Knock Sensor

The knock sensor adjusts the ignition timing to minimize knock.

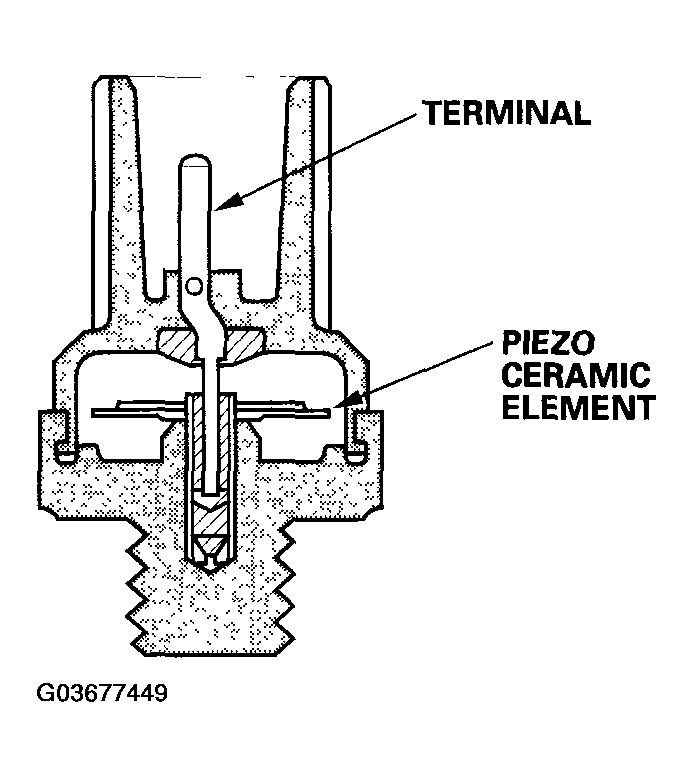

Fig 1: Identifying Knock Sensor Terminal

G03677449

Courtesy of AMERICAN HONDA MOTOR CO., INC.
