Recirculation Control Motor Replacement

  1. Remove the ECM/PCM (see ECM/PCM REPLACEMENT ).
  2. Remove the bolt and the bracket (A). Disconnect the 7P connector (B) and the harness clip (C) from the recirculation control motor (D). Remove the self-tapping screws and the recirculation control motor from the blower unit.

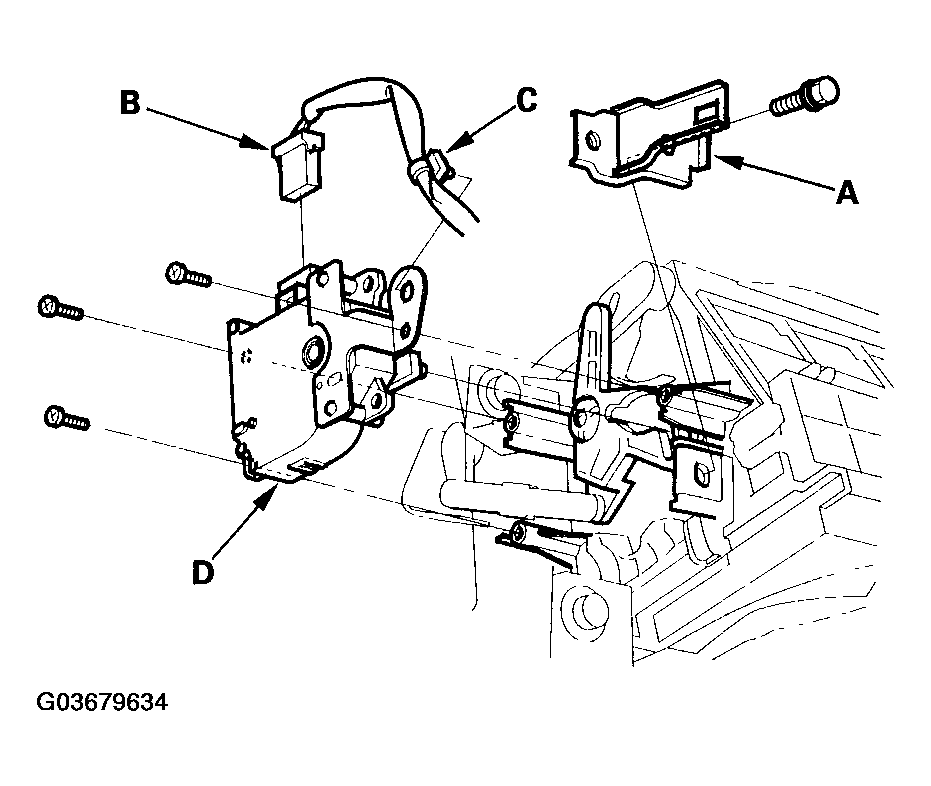

    Fig 1: Disconnecting 7P Connector From Recirculation Control Motor
    G03679634Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
