Control Unit Input Test

  1. Before testing, troubleshoot the multiplex control system (see TROUBLESHOOTING ).
  2. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  3. Disconnect the under-dash fuse/relay box connectors B, F, G, J, X and Y.
    NOTE: All connectors are wire side of female terminals.

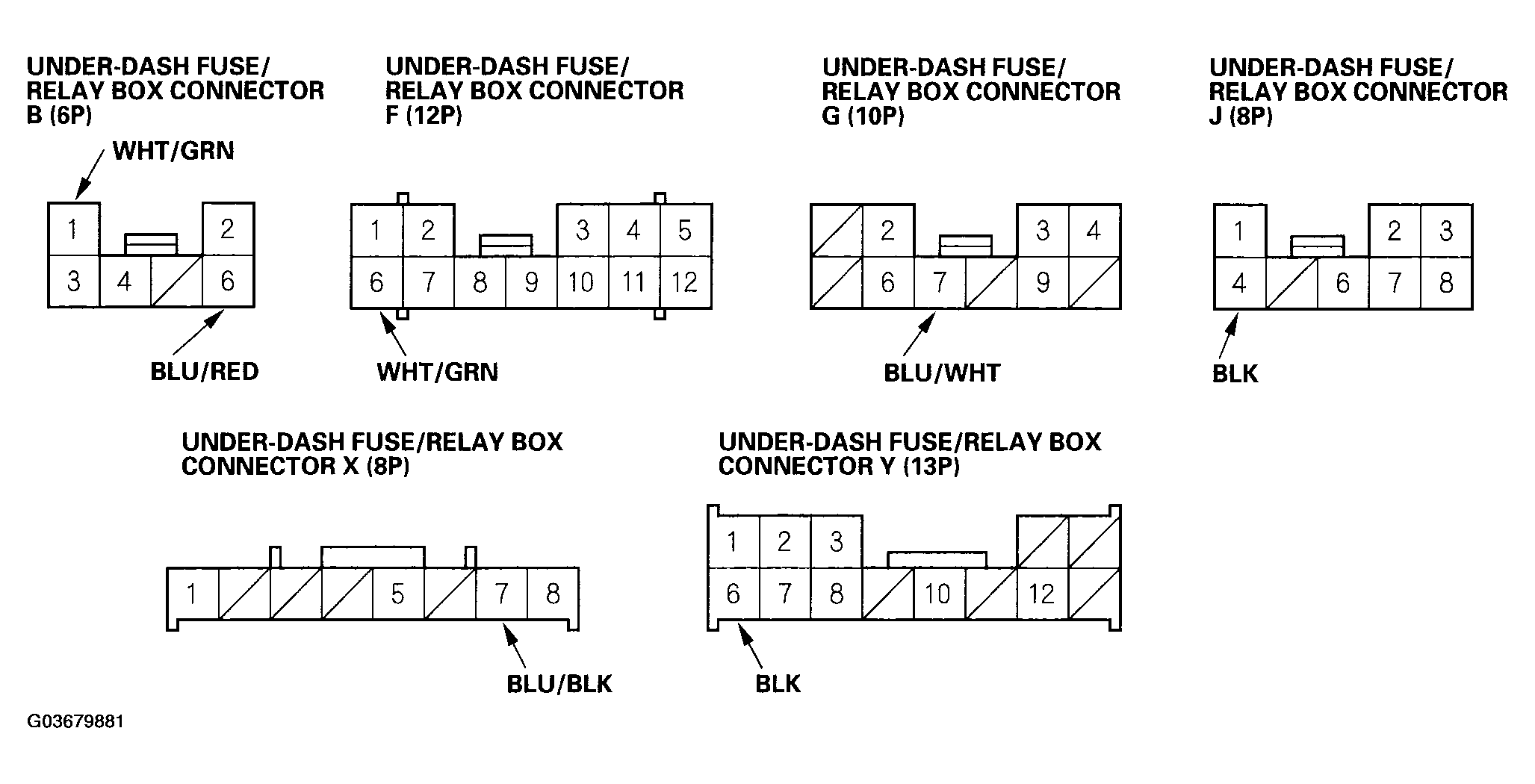

    Fig 1: Identifying Under-Dash Fuse/Relay Box Connectors Terminals
    G03679881Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals are OK, go to step 5.
  5. Reconnect the connectors, and make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash fuse/relay box assembly.
TEST CONDITION

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
J4 BLK Under all conditions Check for voltage to ground: There should be less than 1 V.
  • Poor ground(G301)
  • An open in the wire
Y6 BLK Under all conditions Check for voltage to ground: There should be less than 1 V.
  • Poor ground (G502)
  • An open in the wire
B1 WHT/GRN Ignition switch ON (II) and washer switch ON Check for voltage to ground: There should be battery voltage.
  • Blown No. 20 (20 A) fuse in the under-dash fuse/relay box
  • Faulty wiper/washer switch
  • An open in the wire
X7 BLU/BLK Ignition switch ON (II) and wiper switch in INT Check for voltage to ground: There should be battery voltage.
B6 BLU/RED Ignition switch ON (II), wiper switch in OFF or INT Check for voltage to ground: There should be battery voltage.
  • Blown No. 20 (20 A) fuse in the under-dash fuse/relay box
  • Faulty wiper/washer switch
  • Faulty windshield wiper motor
  • An open in the wire
G7 BLU/WHT Ignition switch ON (II) and wipers in park position Check for voltage to ground: There should be battery voltage.
  • Blown No. 20 (20 A) fuse in the under-dash fuse/relay box
  • Faulty windshield wiper motor
  • An open in the wire
B1 : F6 WHT/GRN Jump B1 to F6 terminals, then ignition switch ON (II) and washer switch ON Check windshield washer motor operation: The washer motor should run.
  • Poor ground (G201)
  • Blown No. 20 (20 A) fuse in the under-dash fuse/relay box
  • Faulty wiper/washer switch
  • Faulty windshield washer motor
  • Faulty under-dash fuse/relay box
  • An open in the wire
