Cruise Control Main Switch Test/Replacement

Release the clips of the switch and push the switch (A) out of the panel, then disconnect the 5P connector (B) from the main switch.

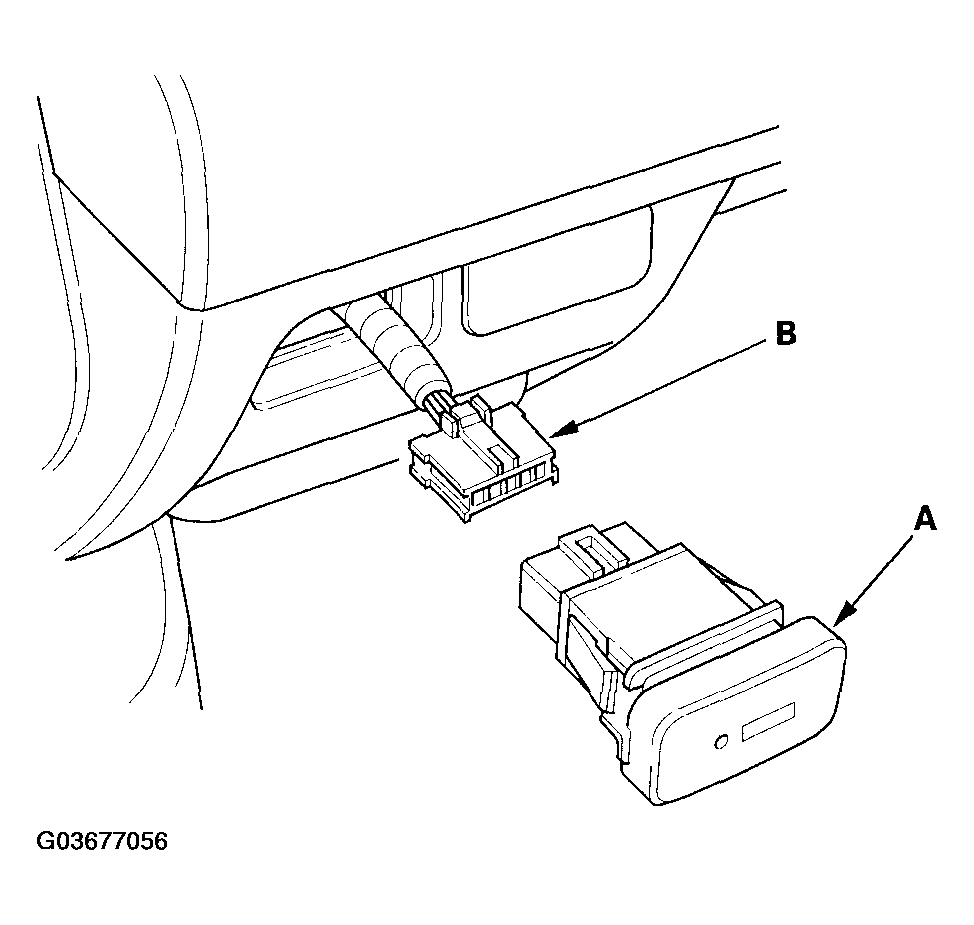

Fig 1: Disconnecting 5P Connector From Main Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (A) or the switch.

Fig 2: Terminal And Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
