How to Remove the ECM for Testing

  1. Remove the passenger's dashboard lower cover, the passenger's kick panel, and the glove box. See INTERIOR TRIM .
  2. Disconnect the connectors (A) and remove the ECM mounting bolts (B).

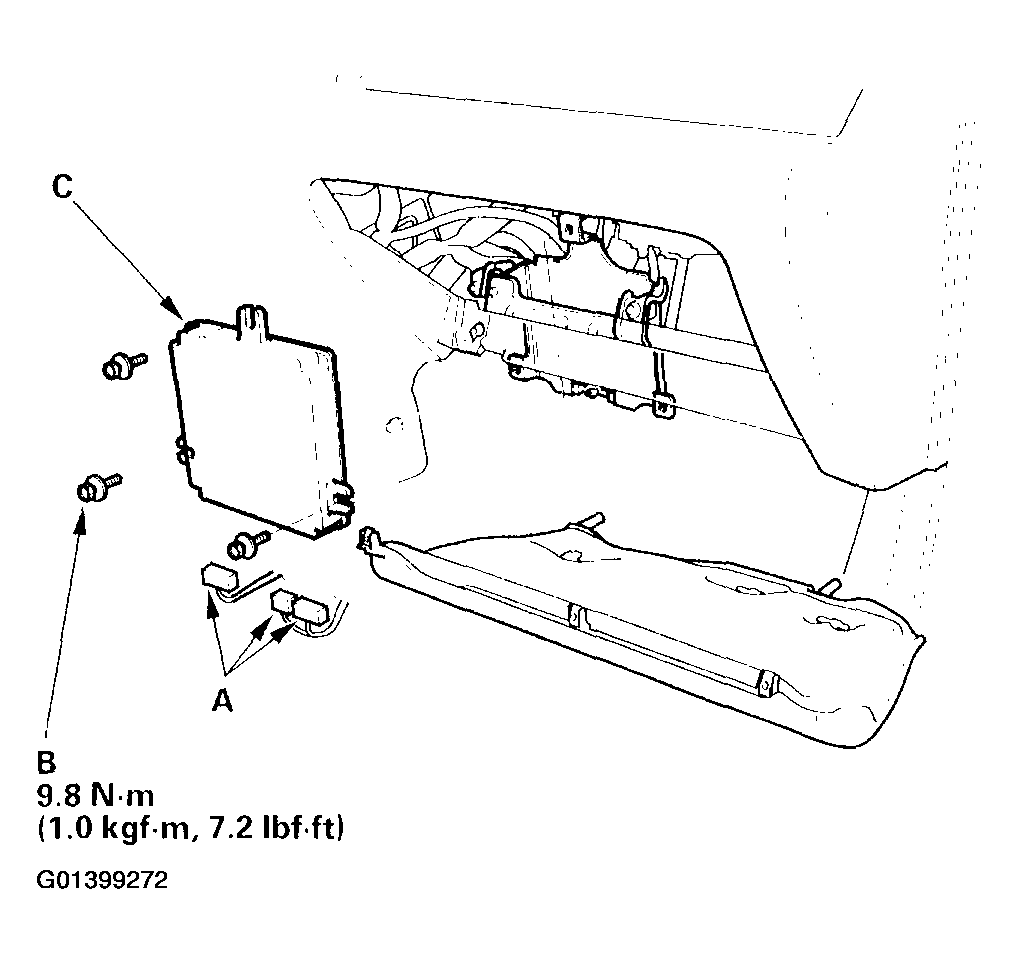

    Fig 1: Removing The ECM
    G01399272Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the ECM (C).
  4. Install the ECM in the reverse order of removal.
