Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

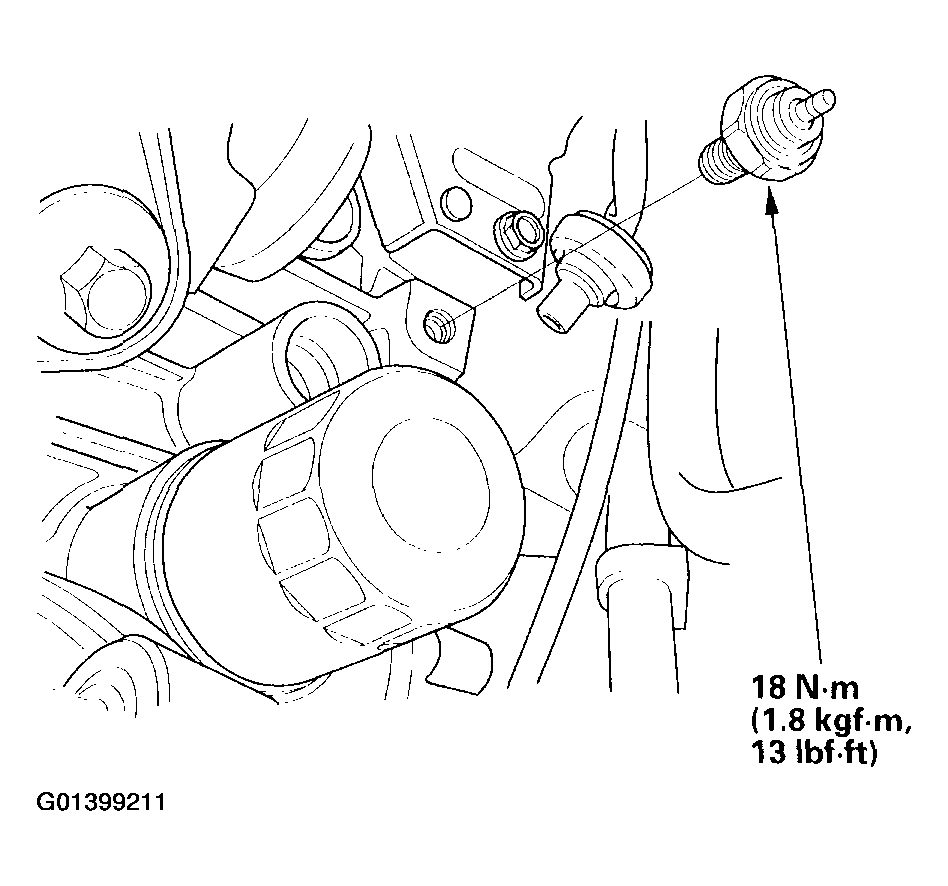

    Fig 1: Removing The Oil Pressure Switch
    G01399211Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any oil liquid gasket from the switch and switch mounting hole.
  3. Apply liquid gasket to the new oil pressure switch threads, then install the new oil pressure switch.
