Symptom Troubleshooting Index

NOTE: The numbers in the table show the troubleshooting sequence. Before troubleshooting:
  • Check the No. 10 (7.5A) and No. 4 (10A) fuses in the under-dash fuse/relay box, and the No. 7 (15A) fuse in the under-hood fuse/relay box.
  • Check that the horn sounds.
  • Check the tachometer to see if it works properly.
  • Check the speedometer to see if it works properly.

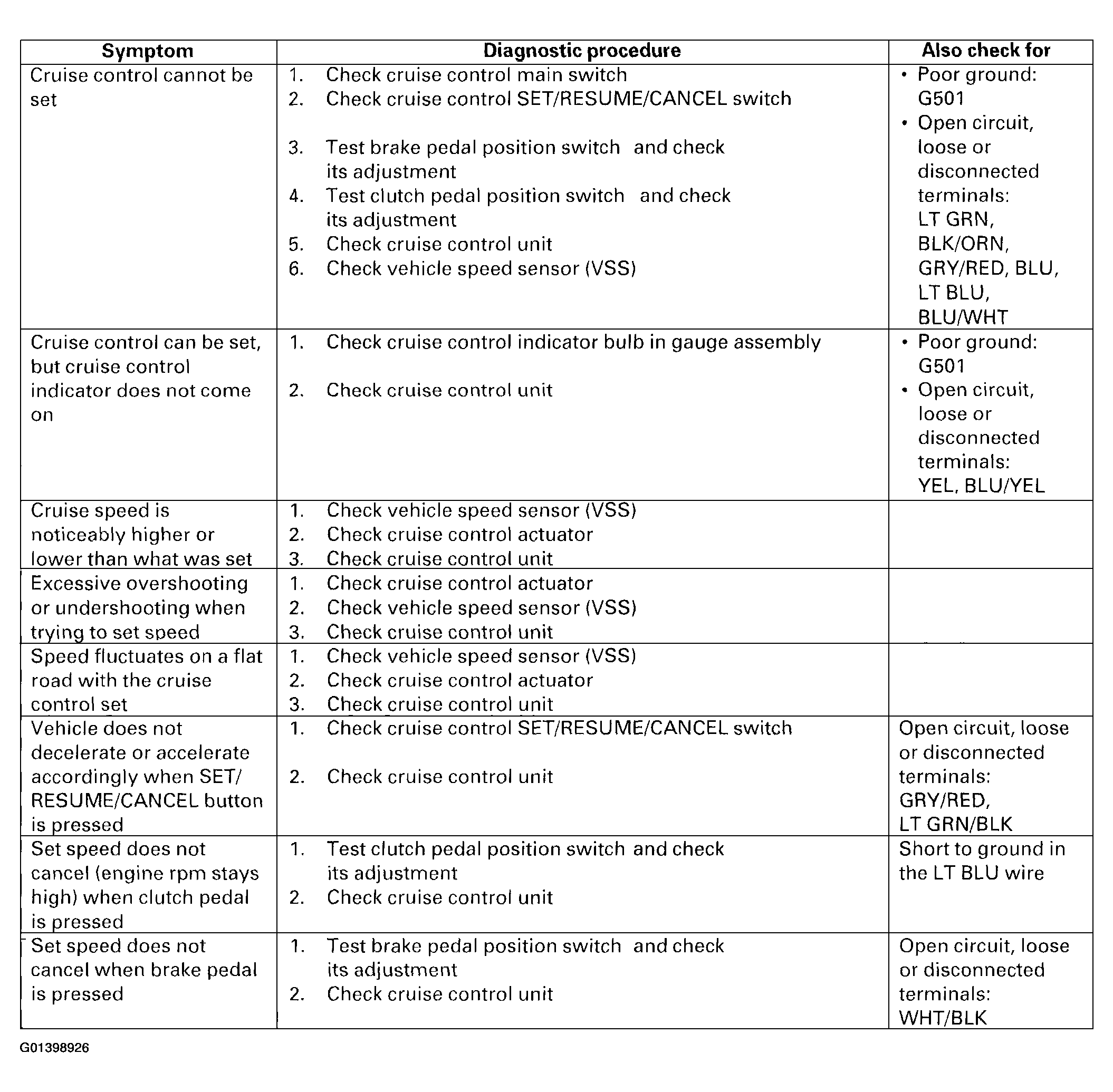

Fig 1: Symptom Troubleshooting Table (1 Of 2)
G01398926Courtesy of AMERICAN HONDA MOTOR CO., INC.

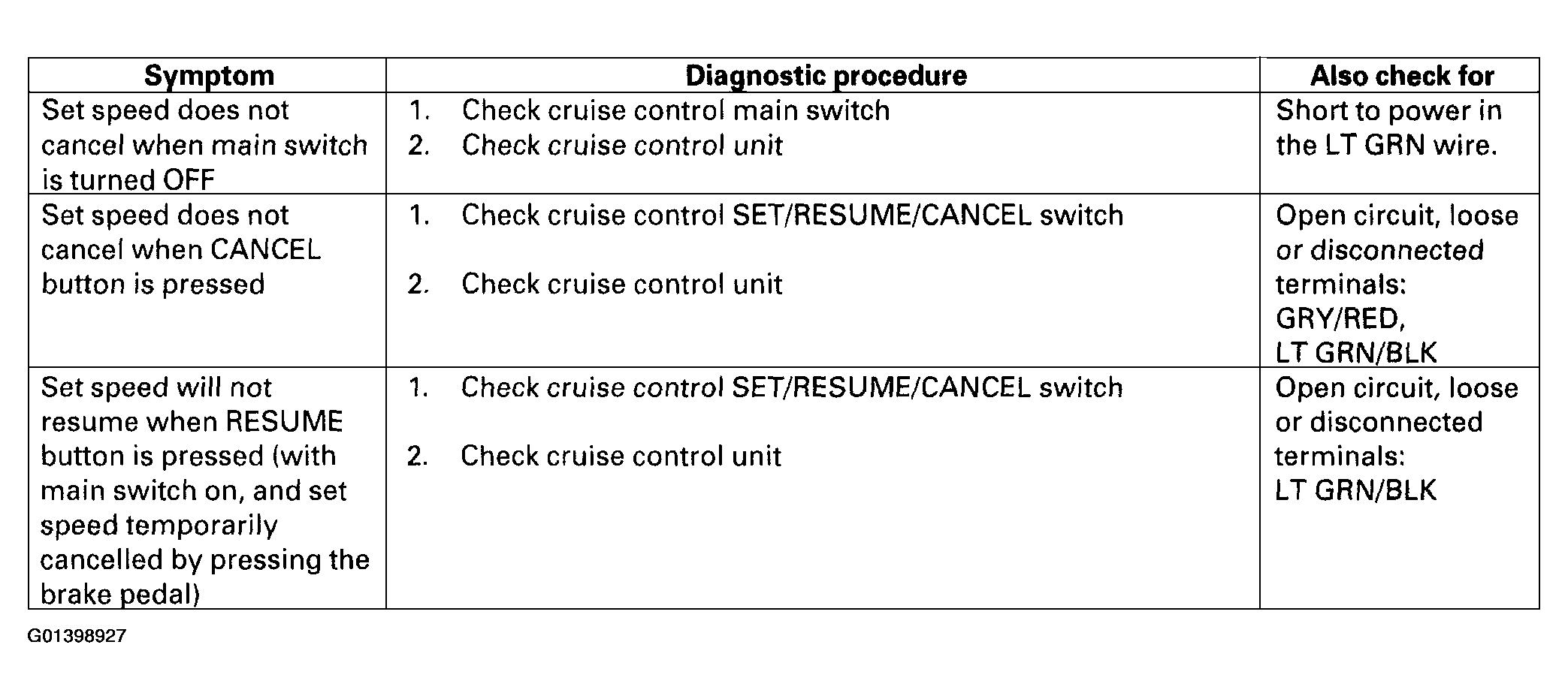

Fig 2: Symptom Troubleshooting Table (2 Of 2)
G01398927Courtesy of AMERICAN HONDA MOTOR CO., INC.
