System Description

Heater Control Panel Inputs and Outputs

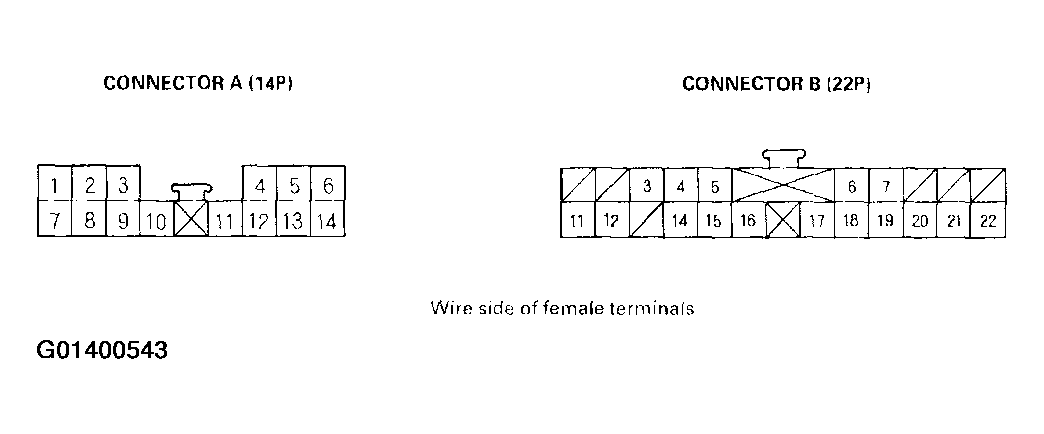

Fig 1: Identifying Heater Control Panel Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

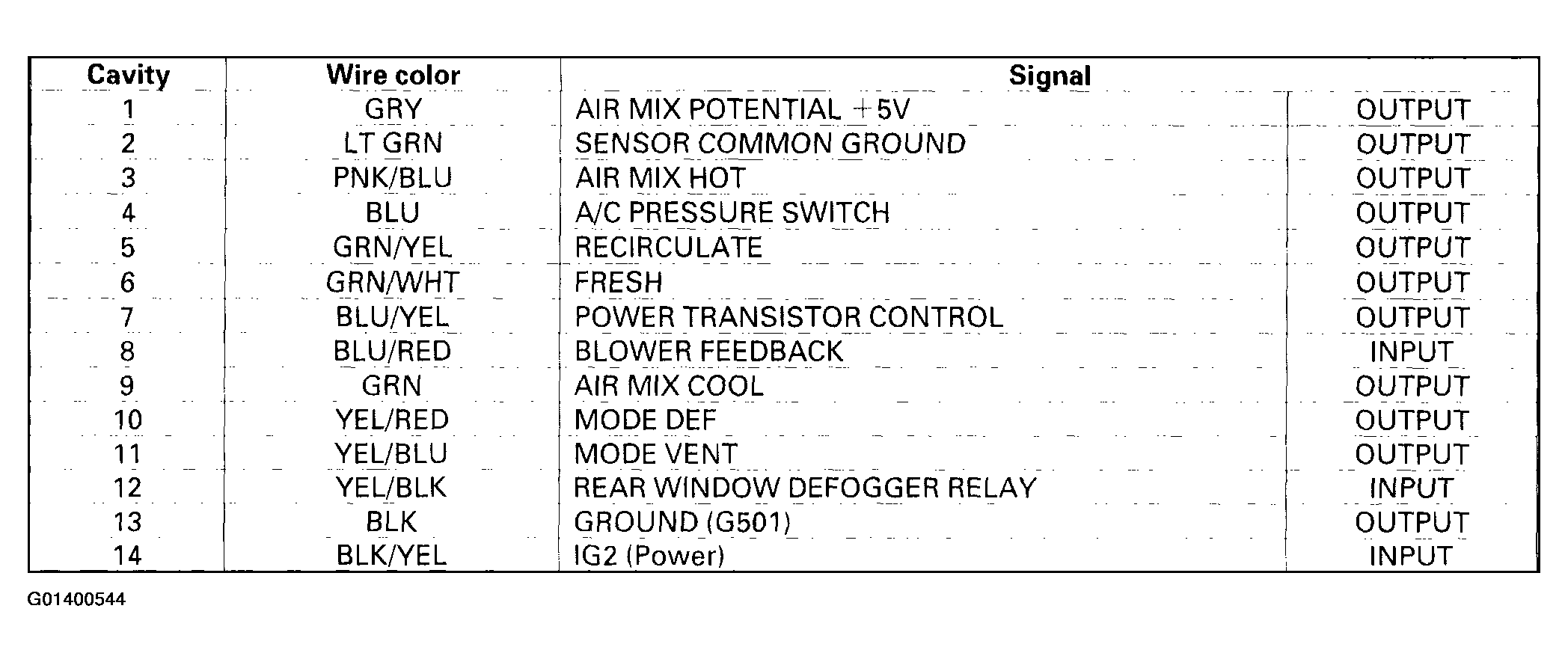

Fig 2: Heater Control Panel Inputs And Outputs (Connector A)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

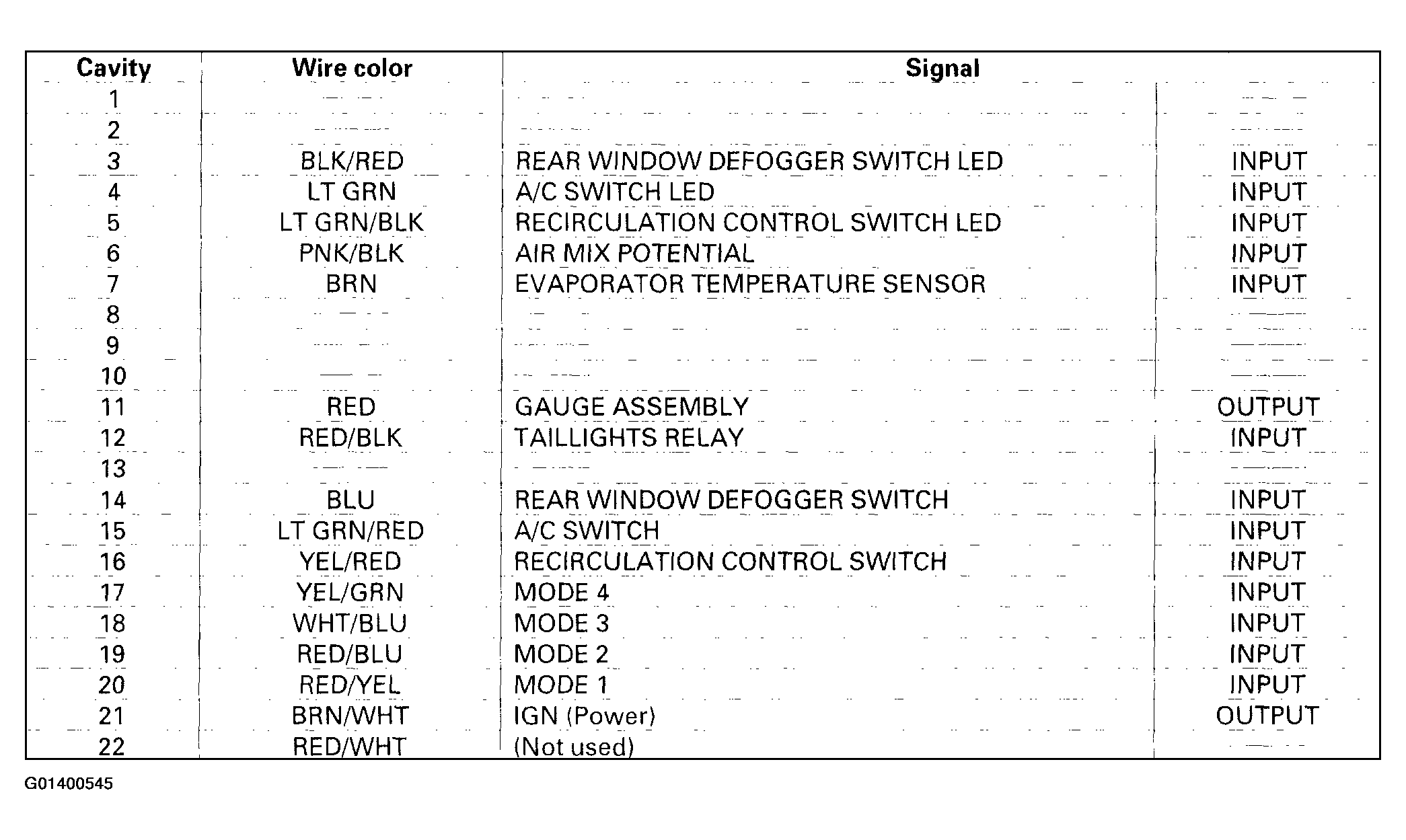

Fig 3: Heater Control Panel Inputs And Outputs (Connector B)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

The air conditioning system removes heat from the passenger compartment by circulating refrigerant through the system.

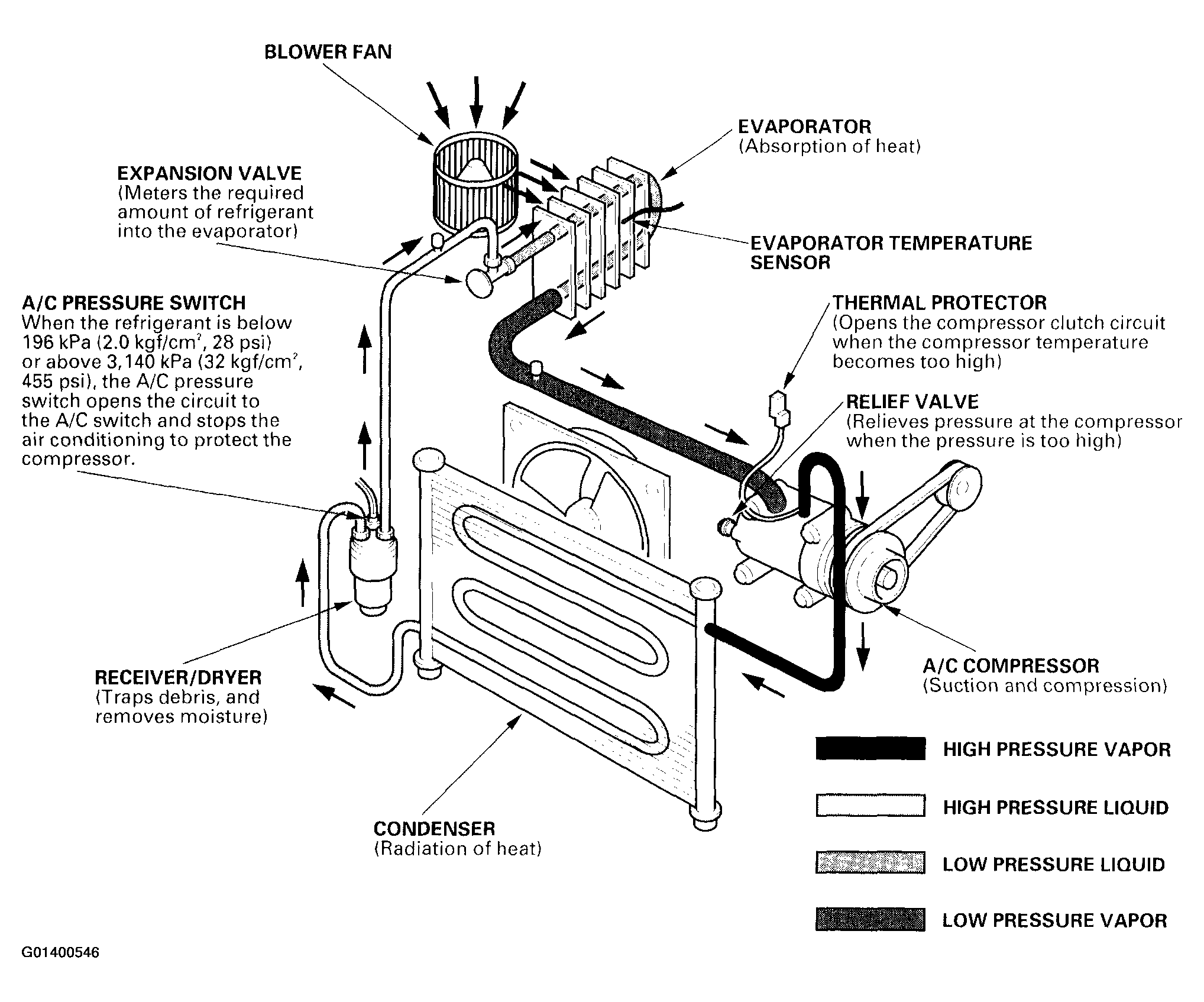

Fig 4: Identifying Air Conditioning System Operation

Courtesy of AMERICAN HONDA MOTOR CO., INC.

This vehicle uses HFC-134a (R-134a) refrigerant which does not contain chlorofluorocarbons. Pay attention to the following service items:

• Do not mix refrigerants CFC-12 (R-12) and HFC-134a (R-134a). They are not compatible.
• Use only the recommended polyalkyleneglycol (PAG) refrigerant oil (KEIHIN SP-10) designed for the R-134a compressor. Intermixing the recommended (PAG) refrigerant oil with any other refrigerant oil will result in compressor failure.
• All A/C system parts (compressor, discharge line, suction line, evaporator, condenser, receiver/dryer, expansion valve, O-rings for joints) are designed for refrigernt R-134a. Do not exchange with R-12 parts.
• Use a halogen gas leak detector designed for refrigerant R-134a.
• R-12 and R-134a refrigerant servicing equipment are not interchangeable. Use only a recovery/recycling/charging station that is U.L. -listed and is certified to meet the requirements of SAE J2210 to service R-134a air conditioning system.
• Always recover the refrigerant R-134a with an approved recovery/recycling/charging station before disconnecting any A/C fitting.
