Recirculation Control Motor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ECM.
  2. Remove the relay mount bracket bolt, and move the relays out of the way.
  3. Disconnect the 5P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

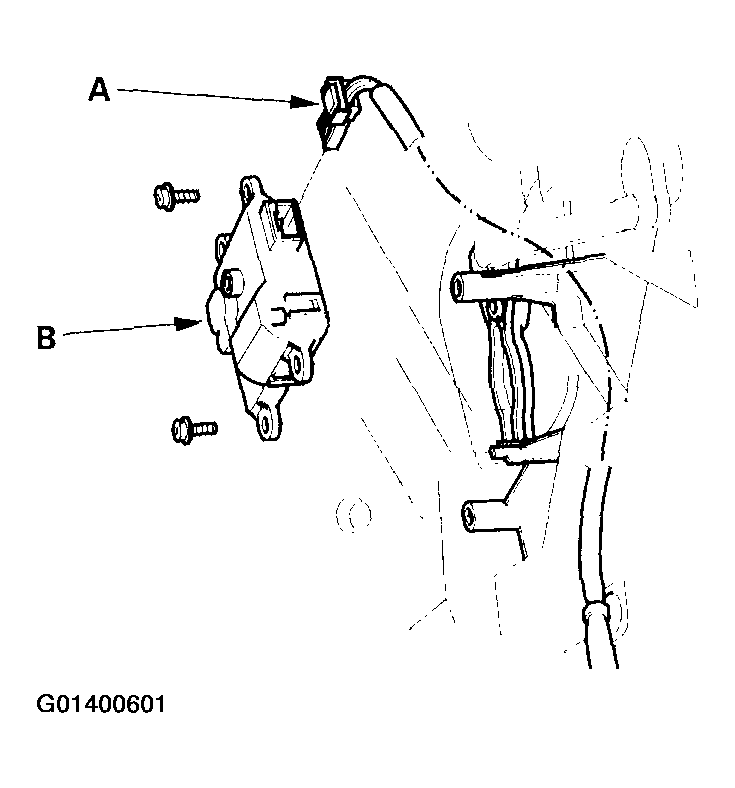

    Fig 1: Removing The Recirculation Control Motor From The Blower Unit
    G01400601Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal and note these items.
    • Make sure the pin on the motor is properly engaged with the linkage.
    • After installation, make sure the motor runs smoothly.
    • Do the ECM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
