Mode Control Motor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ECM.
  2. Remove the relay mount bracket bolt, and move the relays out of the way.
  3. Disconnect the 10P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.

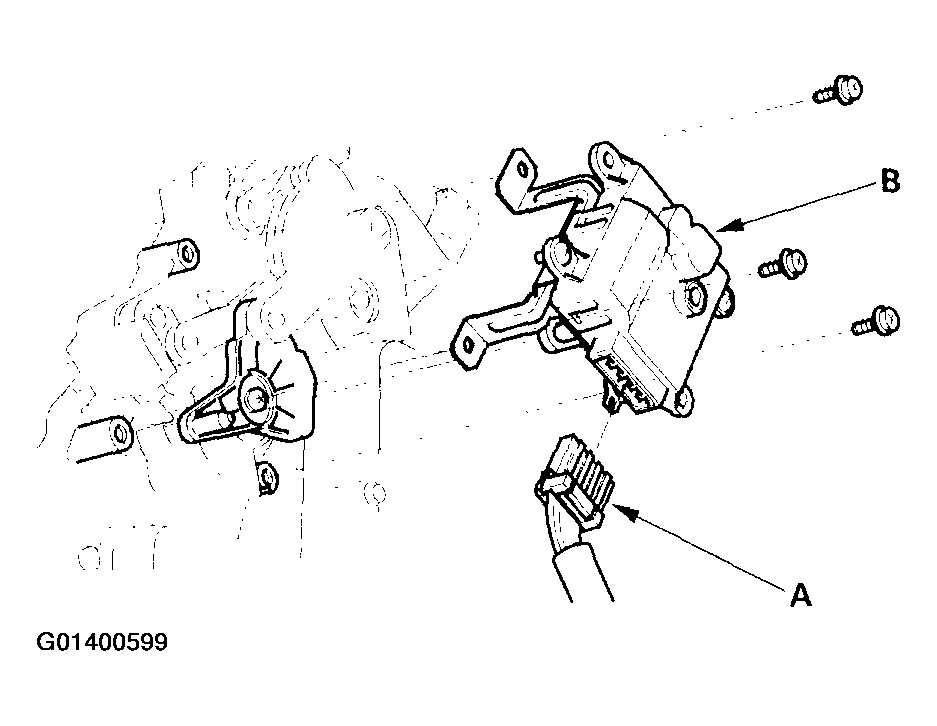

    Fig 1: Removing The Mode Control Motor From The Heater Unit
    G01400599Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal, and note these items.
    • Make sure the pin on the linkage is properly engaged with the motor.
    • After installation, make sure the motor runs smoothly.
    • Do the ECM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
