Evaporator Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driver's dashboard lower cover and the under cover. See INTERIOR TRIM .
  2. Remove the under-dash fuse/relay box (see FUSES & CIRCUIT BREAKERS - HATCHBACK ).
  3. Disconnect the 2P connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C). Remove the self-tapping screw, and carefully pull out the evaporator temperature.

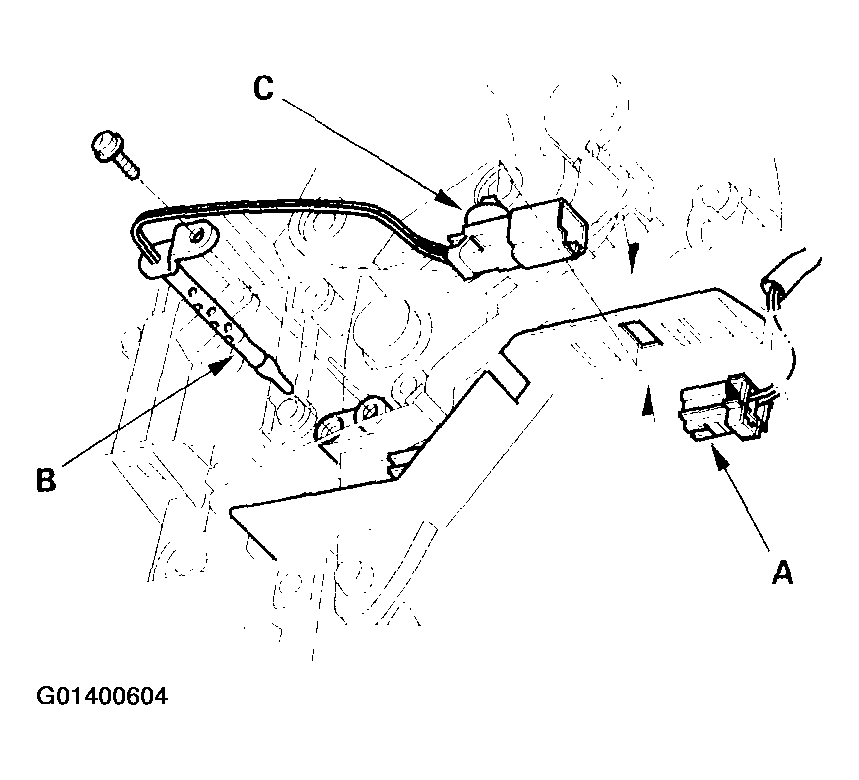

    Fig 1: Removing Evaporator Temperature Sensor
    G01400604Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal.
