Compressor Thermal Protector Replacement

WARNING: This page is about a different variant/trim than selected.

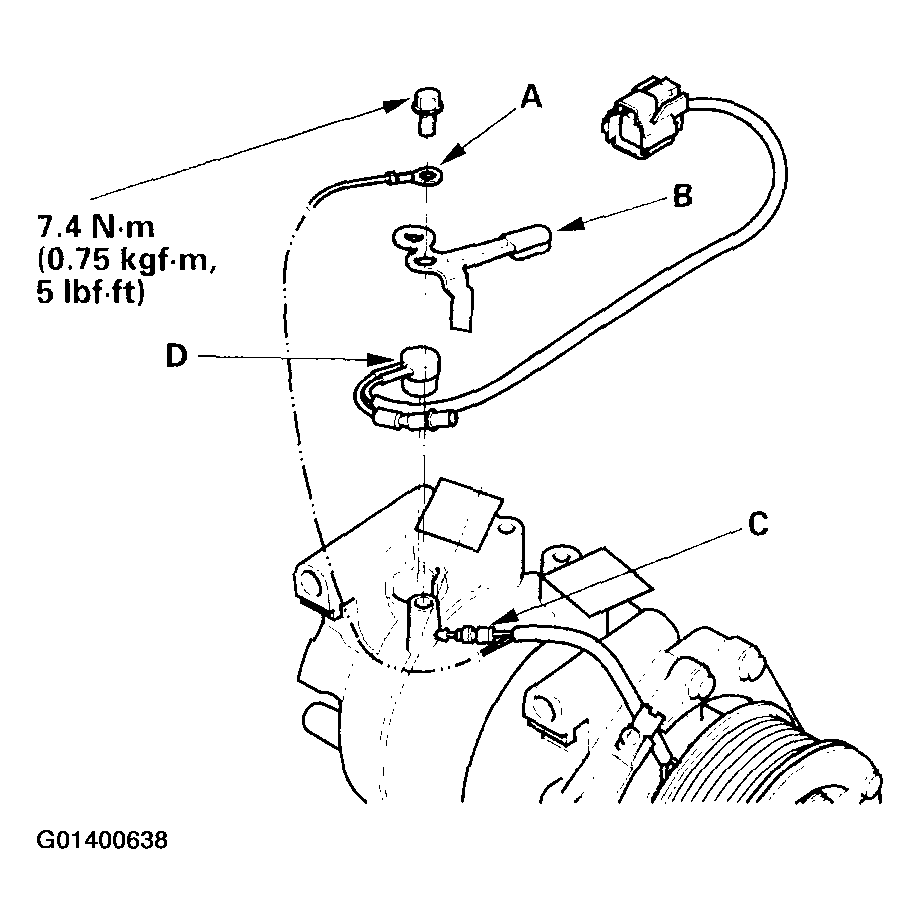

  1. Remove the bolt, the ground terminal (A), and the holder (B). Disconnect the field coil connector (C), then remove the thermal protector (D).
    Fig 1: Removing The Thermal Protector
    G01400638Courtesy of AMERICAN HONDA MOTOR CO., INC.

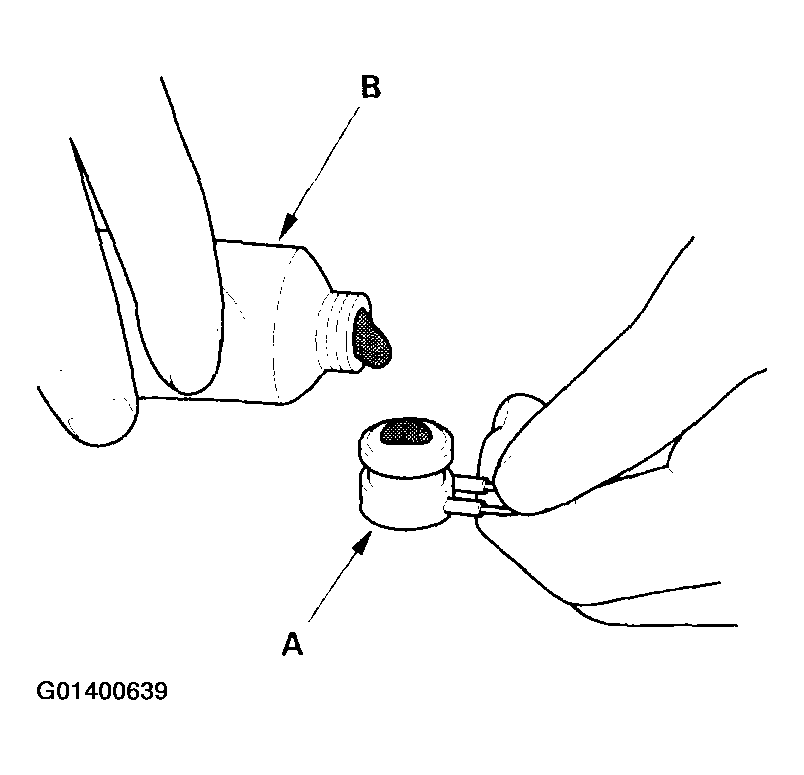

  2. Replace the thermal protector (A) with a new one, and apply silicone sealant (B) to the bottom of the thermal protector.
    Fig 2: Applying Silicone Sealant To The Bottom Of The Thermal Protector
    G01400639Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal.
