Air Mix Control Motor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the under-dash fuse/relay box (see FUSES & CIRCUIT BREAKERS - HATCHBACK ).
  2. Disconnect the 5P connector (A) from the air mix control motor (B). Remove the self-tapping screws and the air mix control motor from the heater unit. Remove the rod (C) from the arm (D) of the air mix control motor.

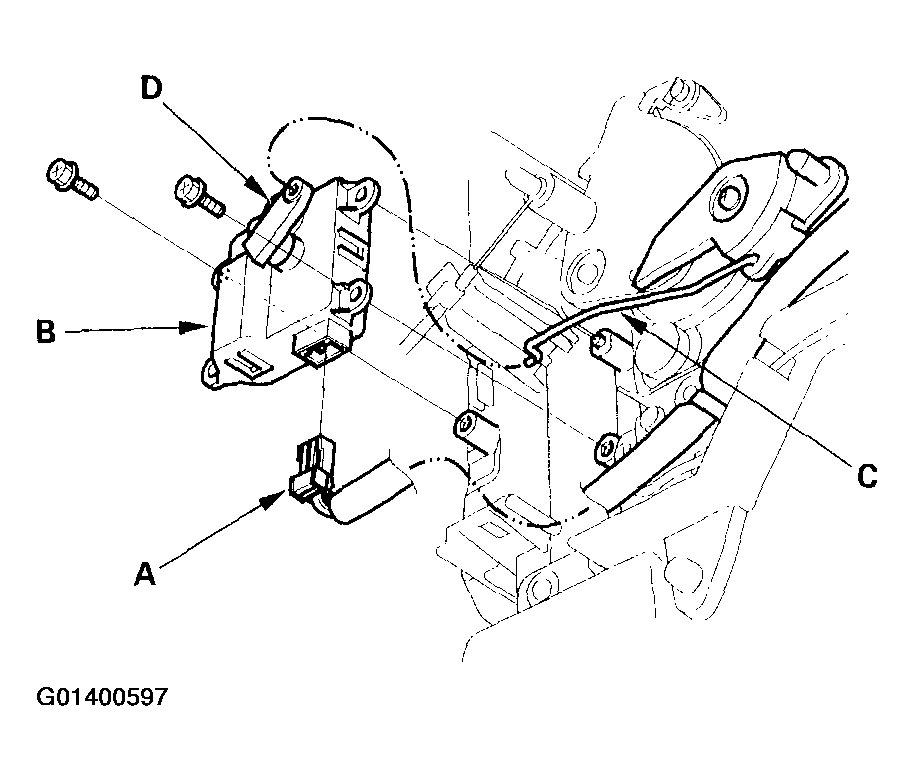

    Fig 1: Removing The Air Mix Control Motor
    G01400597Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
