Pressure Test

WARNING: This page is about a different variant/trim than selected.

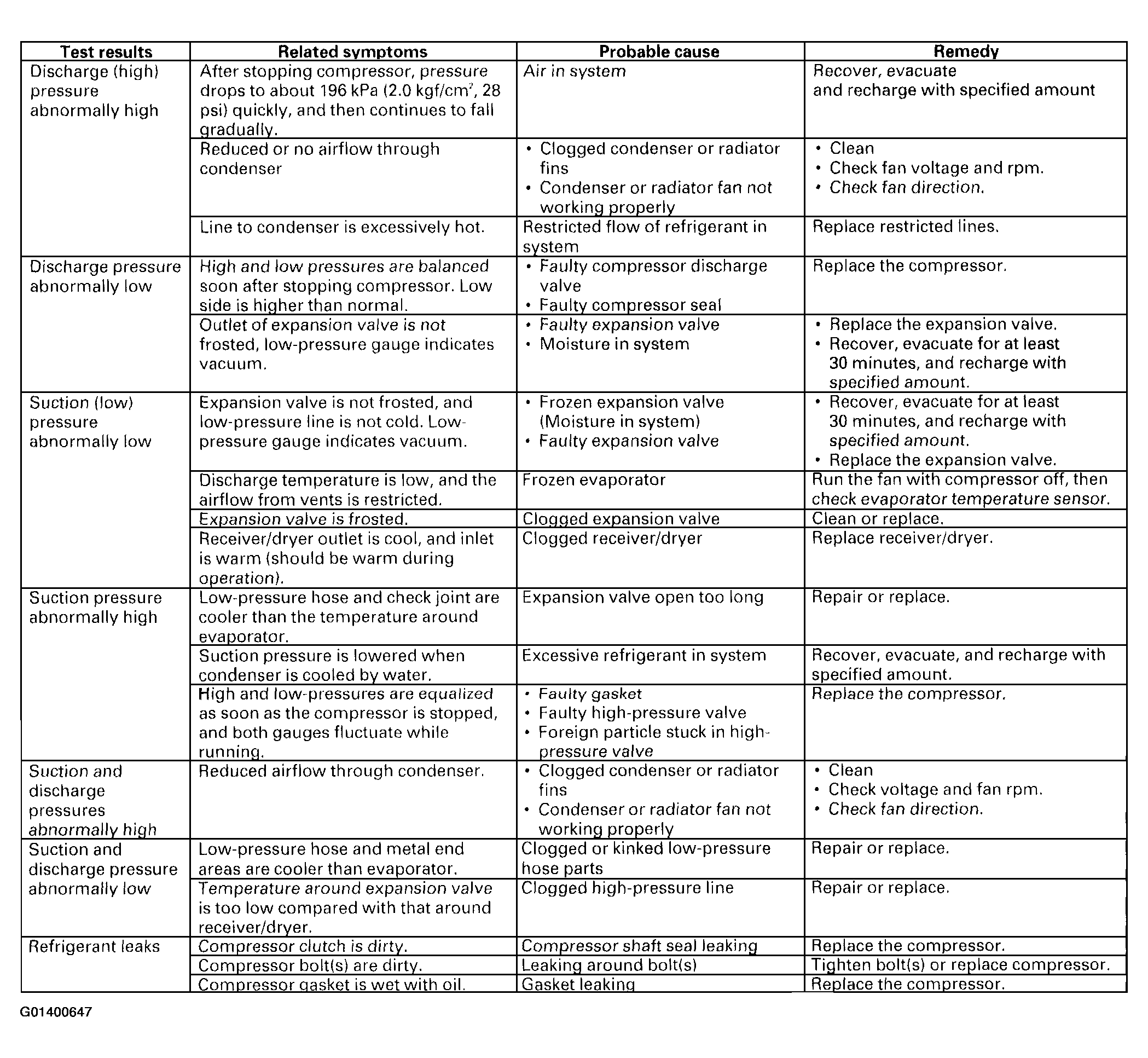

Fig 1: A/C System Pressure Test Chart

G01400647

Courtesy of AMERICAN HONDA MOTOR CO., INC.
