Intake Air System Diagram

This system supplies air for engine needs. A resonator in the intake air duct provides additional silencing as air is drawn into the system.

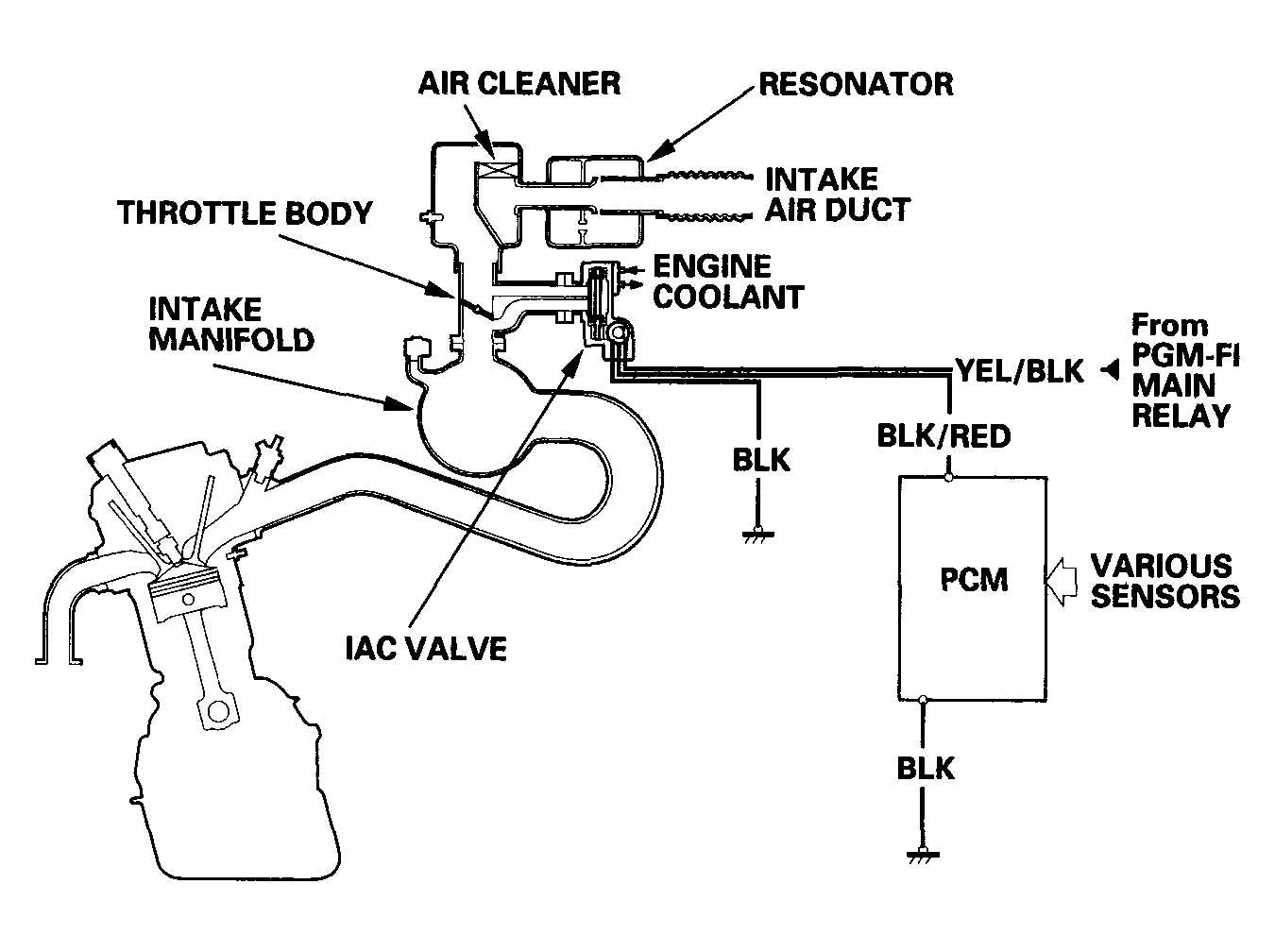

Fig 1: Intake Air System Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM Circuit Diagram

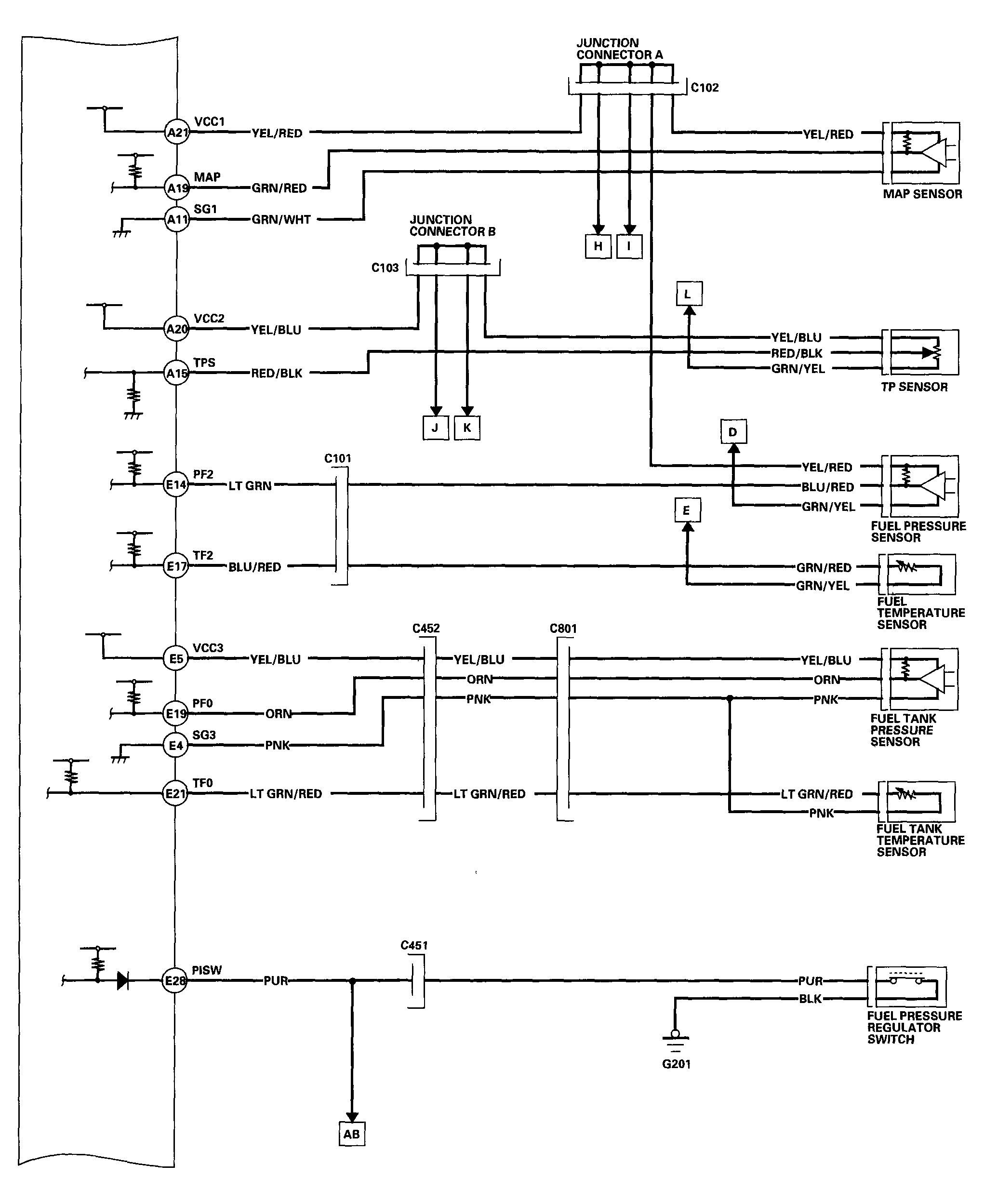

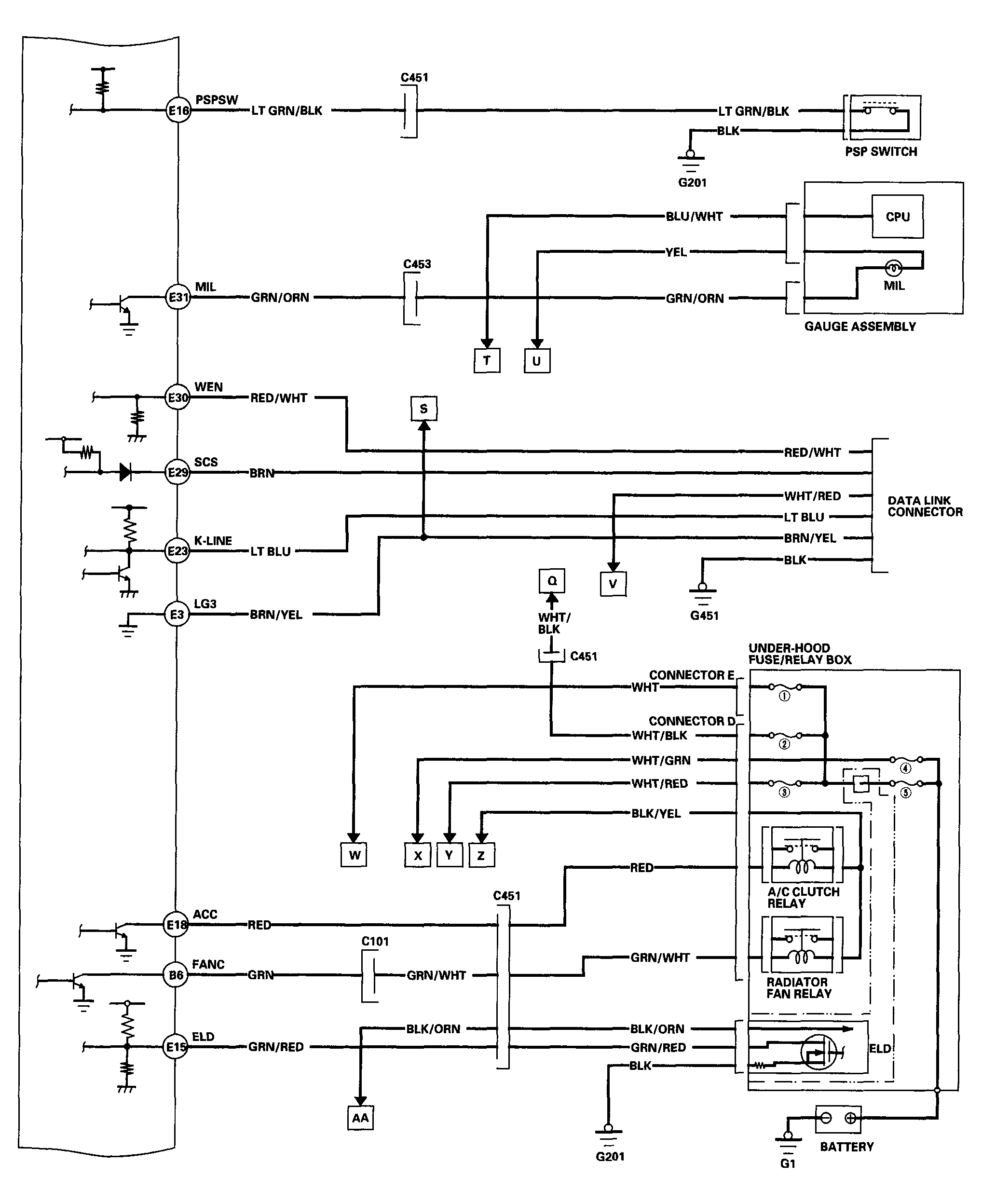

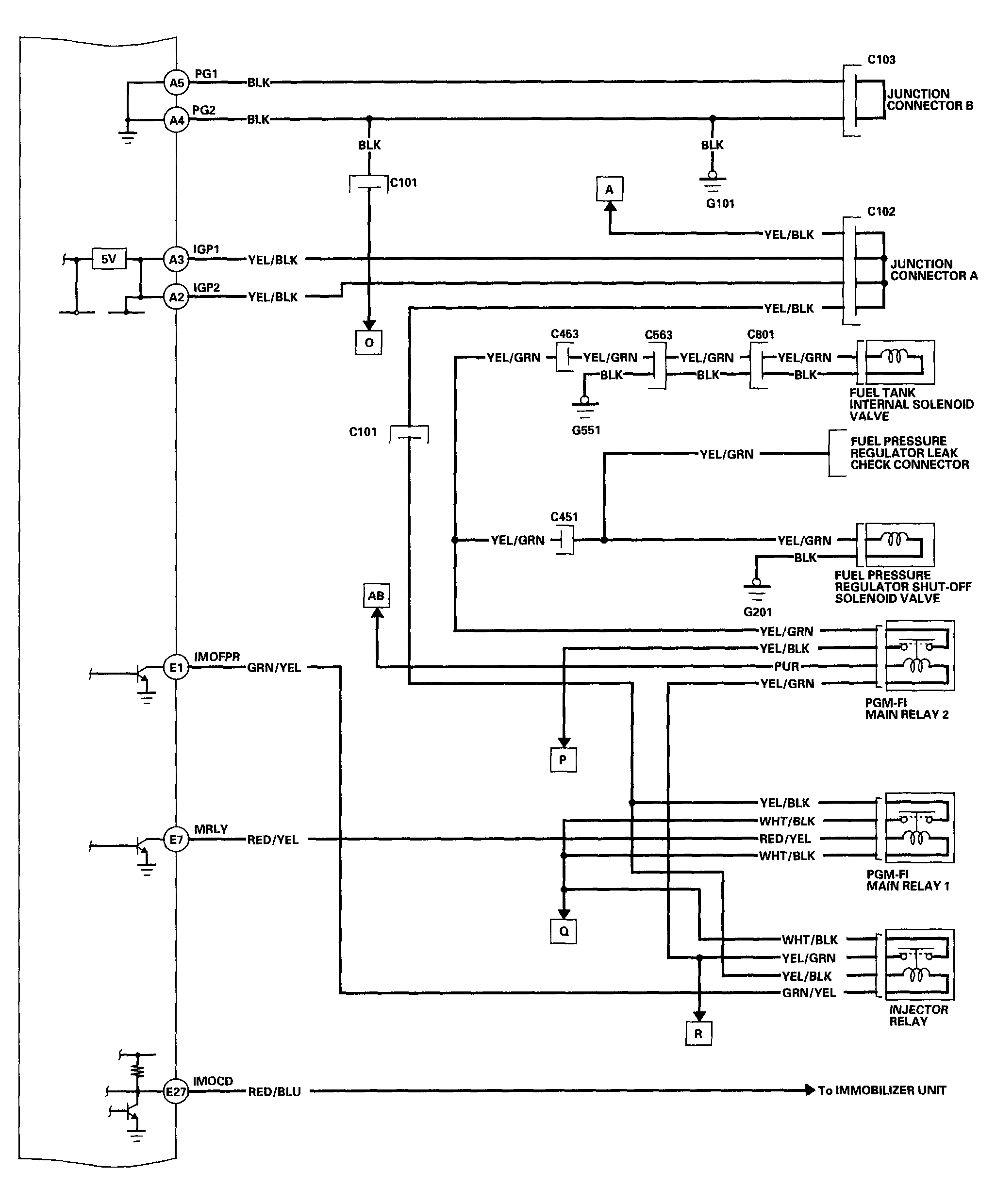

Fig 2: PCM Circuit Diagram (1 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM Circuit Diagram (cont'd)

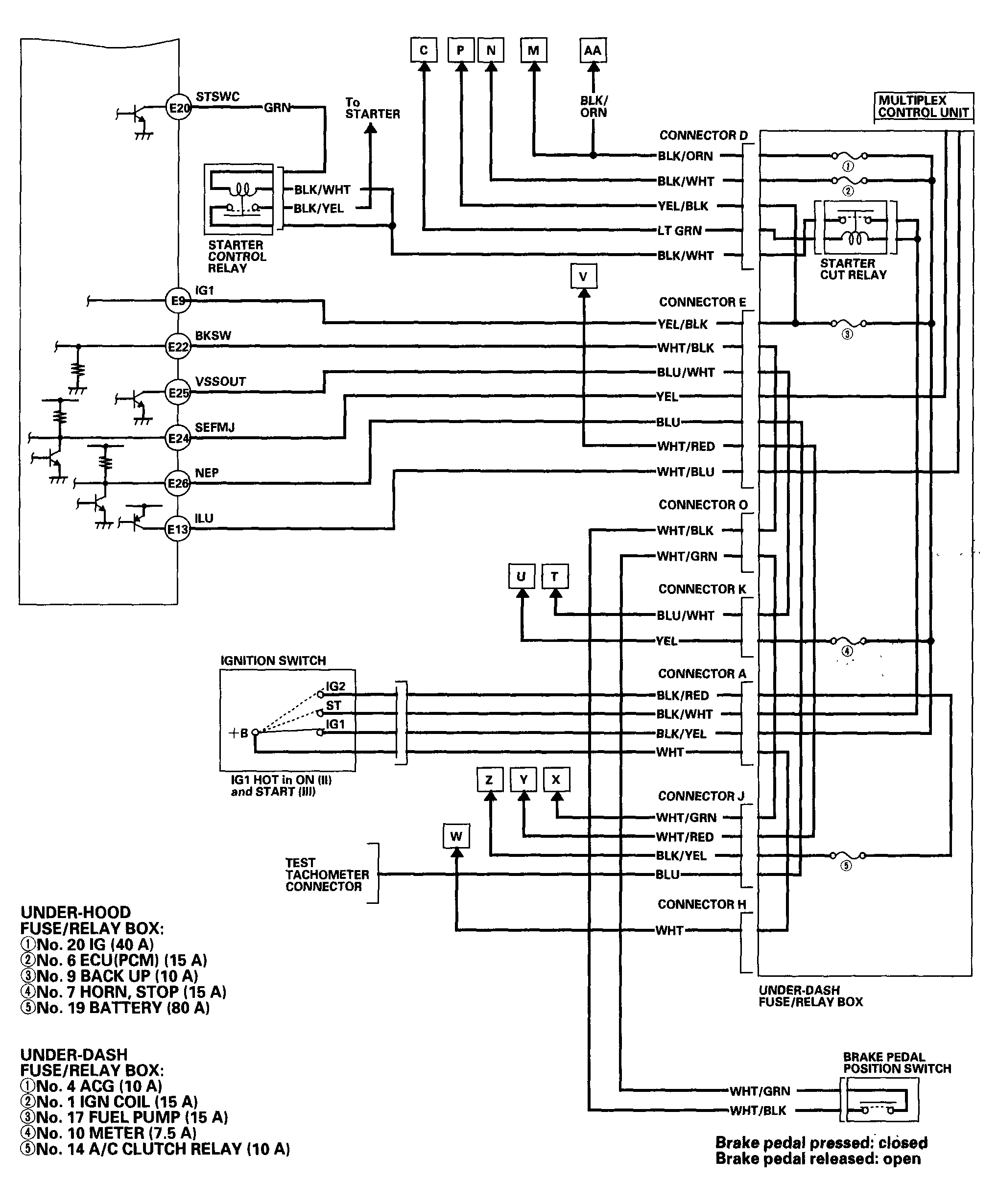

Fig 3: PCM Circuit Diagram (2 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

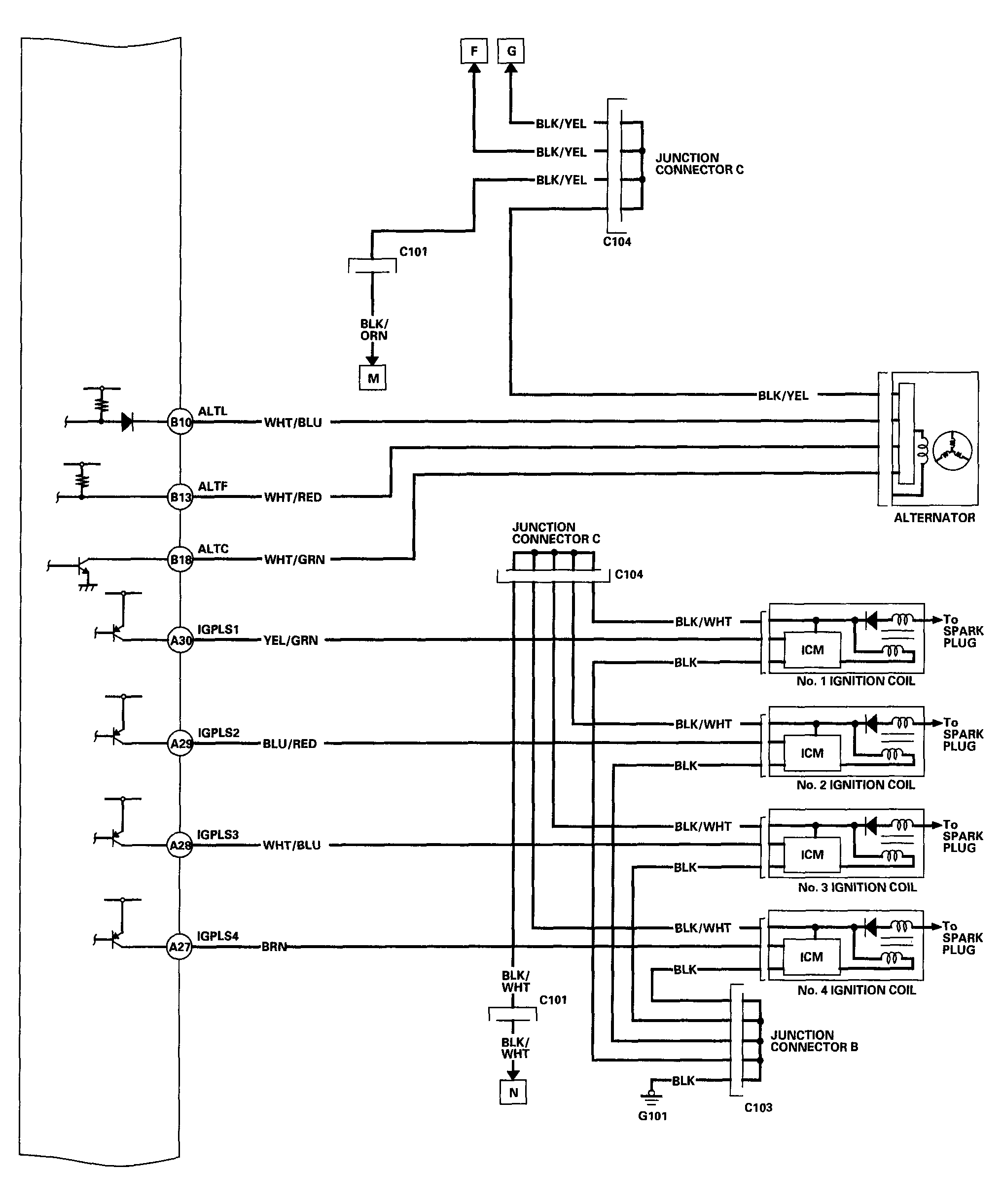

Fig 4: PCM Circuit Diagram (3 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM Circuit Diagram (cont'd)

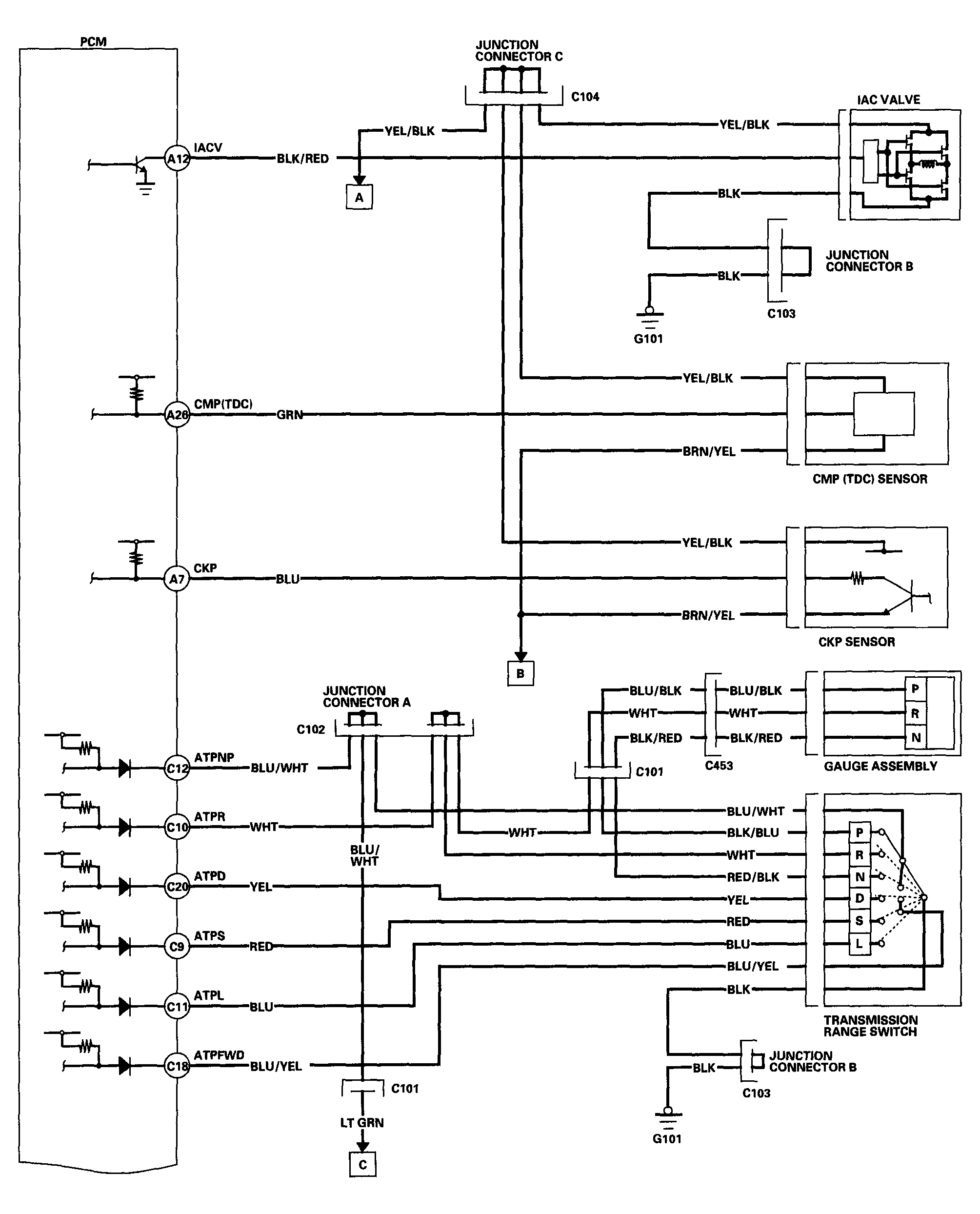

Fig 5: PCM Circuit Diagram (4 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

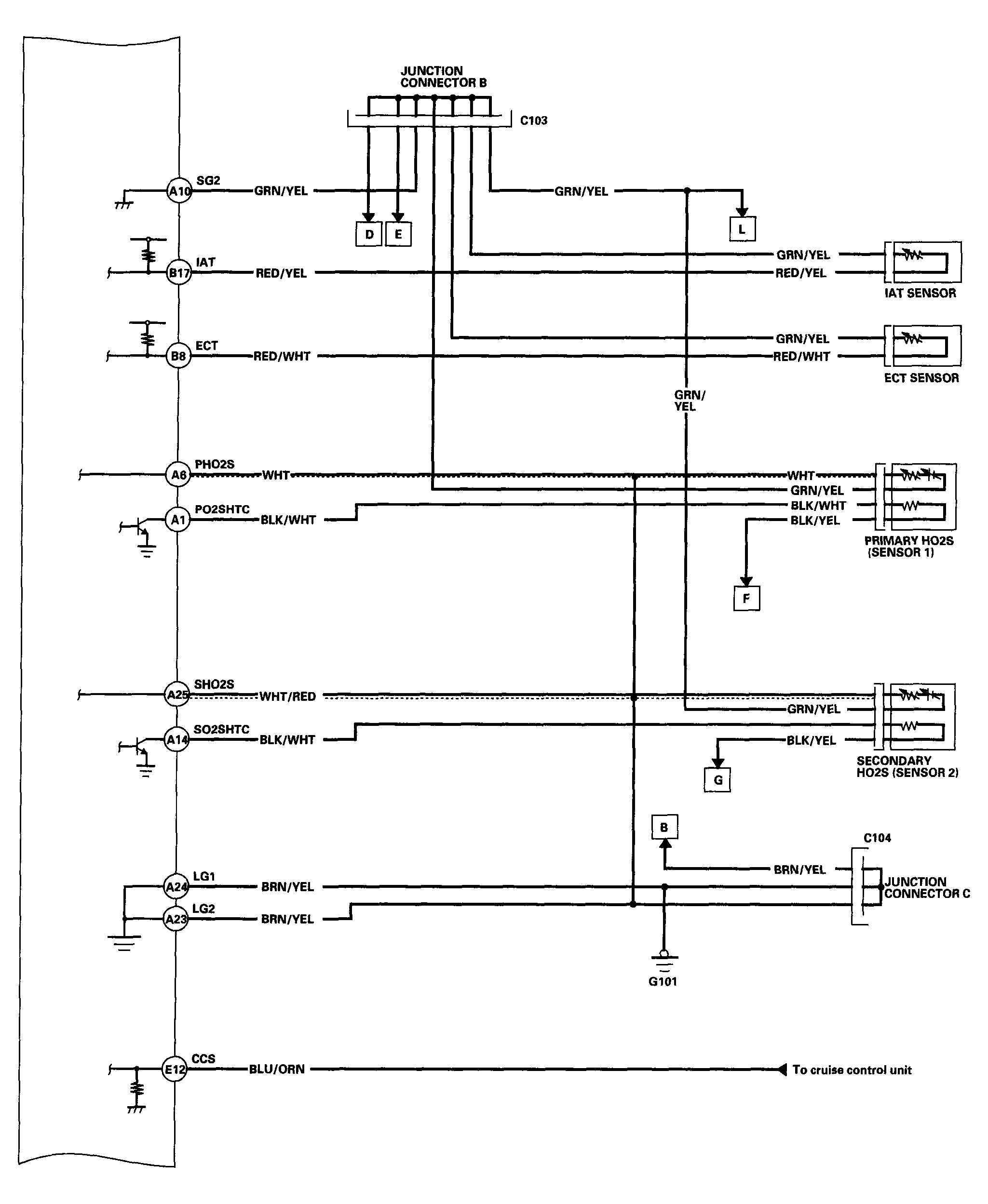

Fig 6: PCM Circuit Diagram (5 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM Circuit Diagram (cont'd)

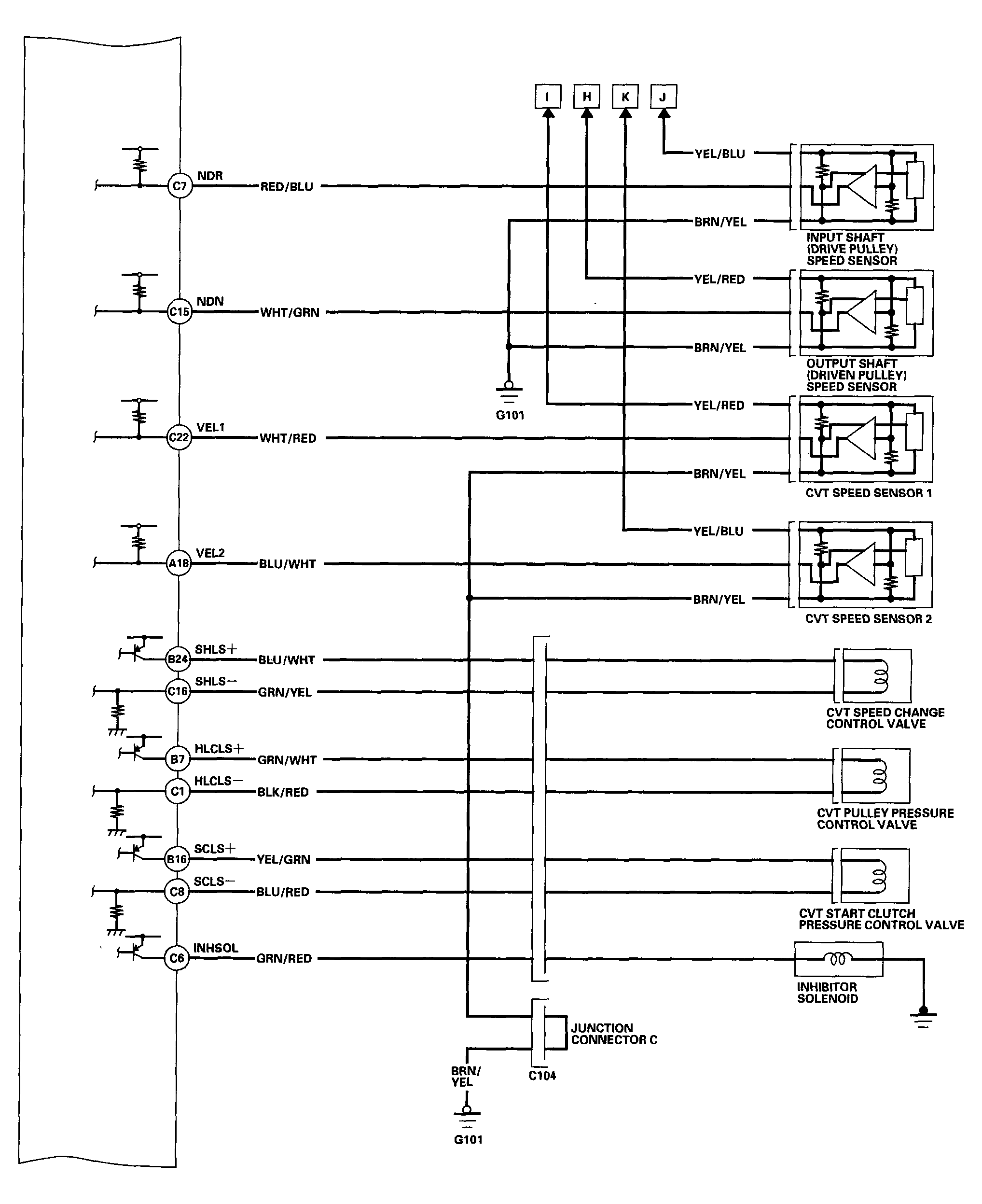

Fig 7: PCM Circuit Diagram (6 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

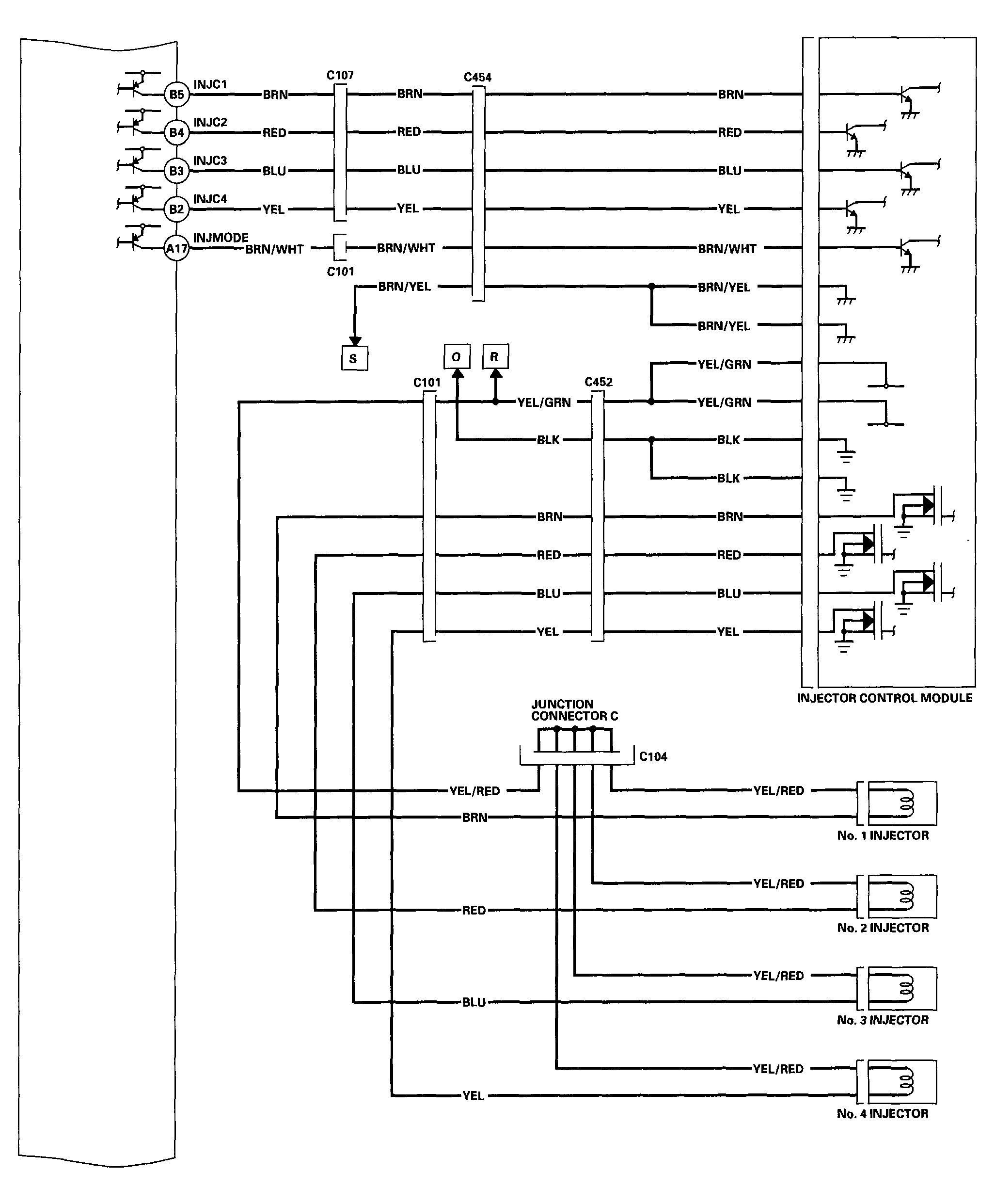

Fig 8: PCM Circuit Diagram (7 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM Circuit Diagram (cont'd)

Fig 9: PCM Circuit Diagram (8 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: PCM Circuit Diagram (9 Of 9)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
