Fuel Temperature Sensor

The fuel temperature sensor is on the fuel rail. It measures the temperature of the fuel. Its signal is used to correct the fuel injection period according to fuel temperature.

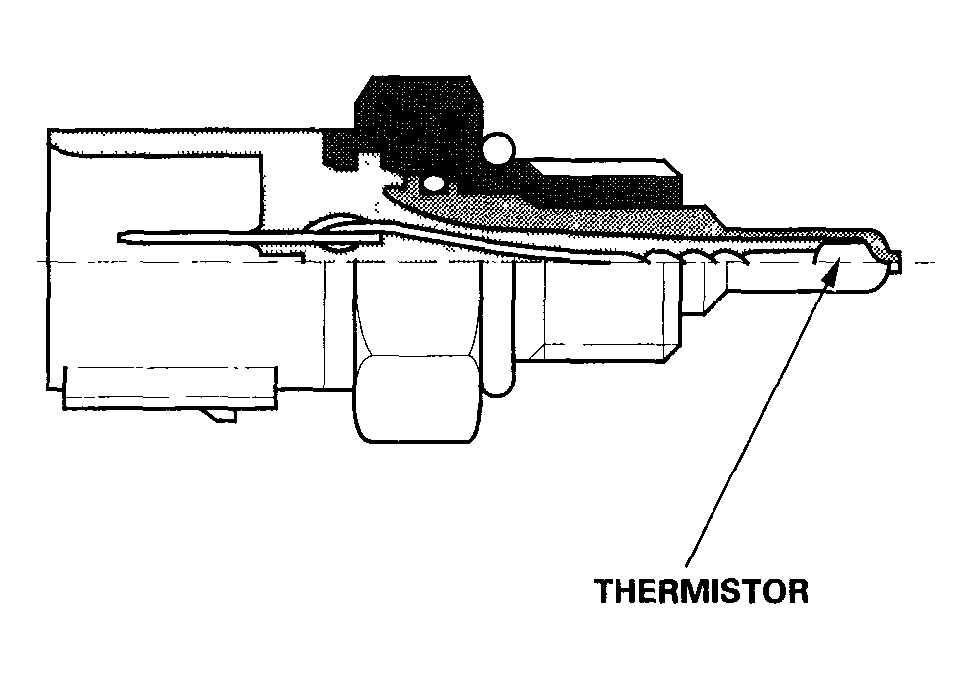

Fig 1: Identifying Fuel Temperature Sensor Thermistor
G04536018Courtesy of AMERICAN HONDA MOTOR CO., INC.
