Home >> Honda >> 2003 >> CR-V EX, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Component Location Index

Component Location Index

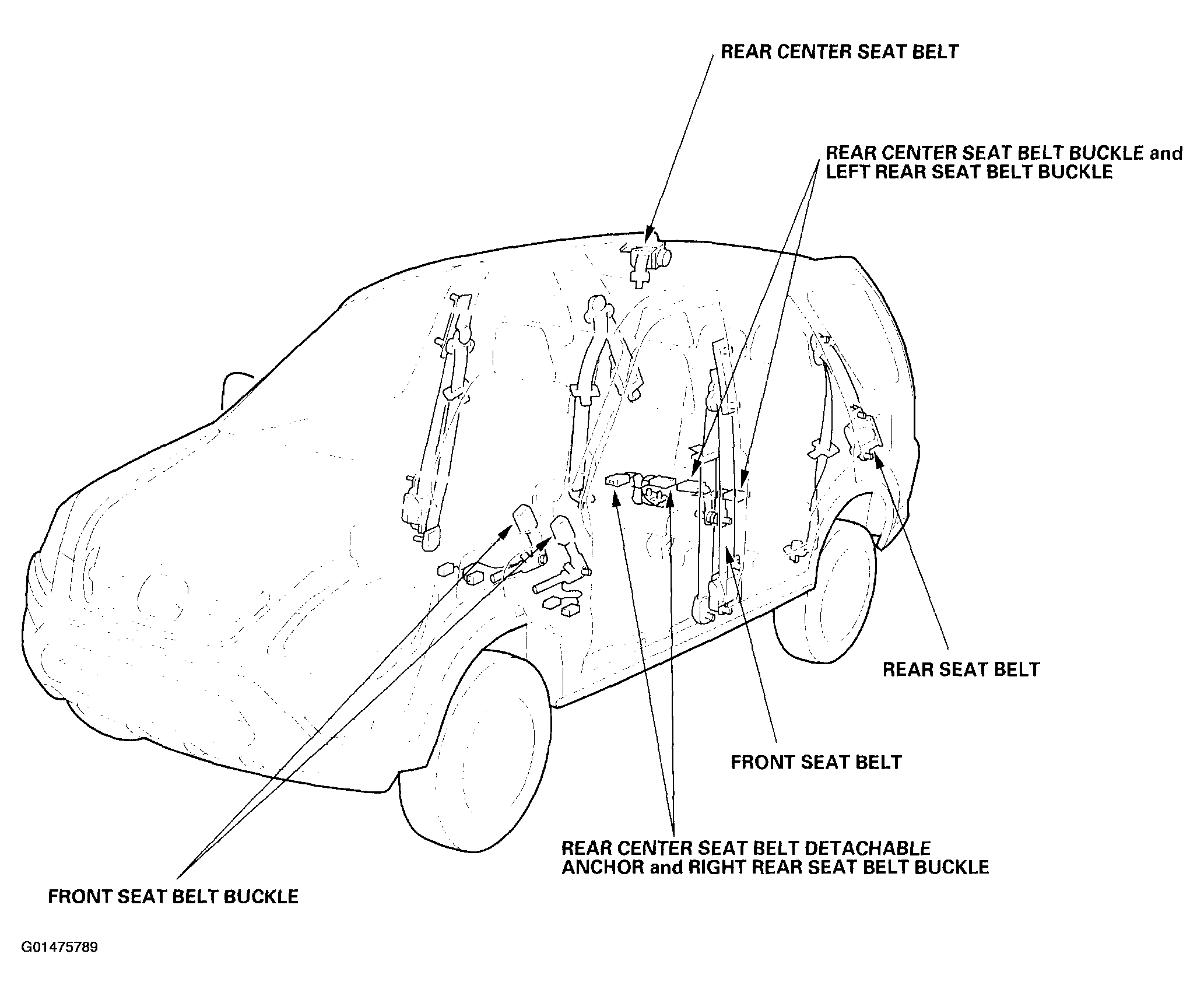

Fig 1: Seat Belt Component Locations

G01475789

Courtesy of AMERICAN HONDA MOTOR CO., INC.
