Wiper/Washer Switch Connector End View

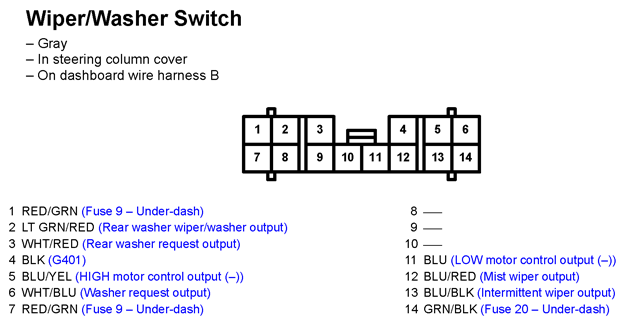

Fig 1: Wiper/Washer Switch Connector End View

G11249208

Courtesy of AMERICAN HONDA MOTOR CO., INC.
