Camshaft Position (CMP) Sensor A

The CMP sensor A detects camshaft angle position for the VTC system.

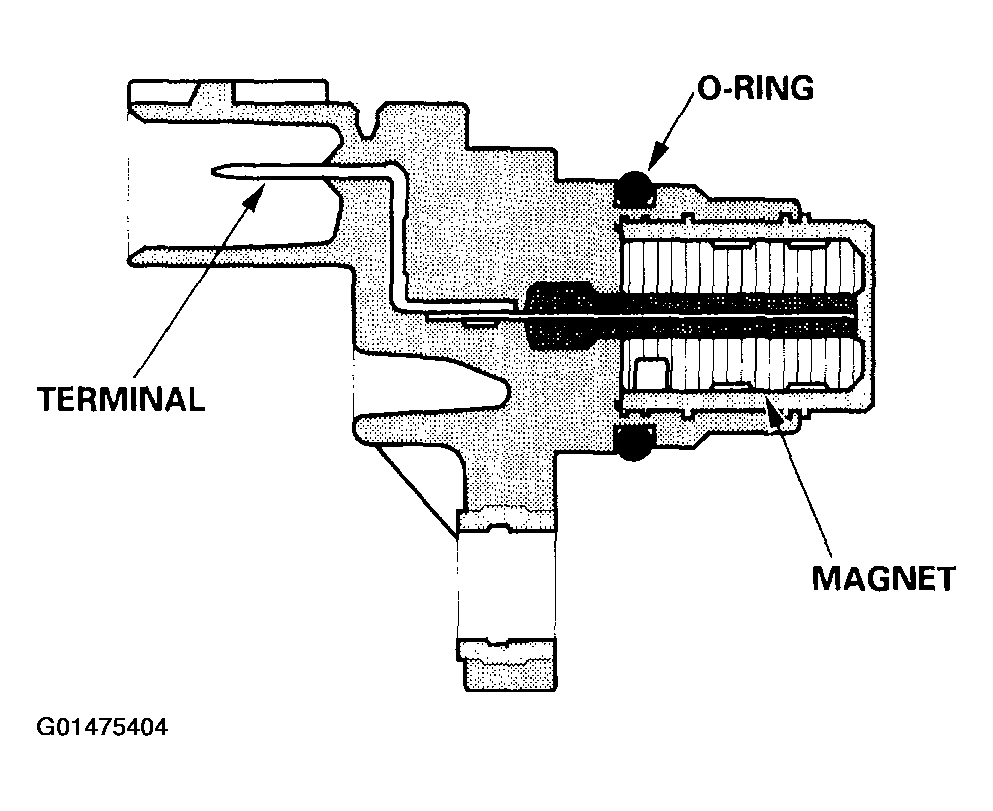

Fig 1: Identifying Camshaft Position Sensor A

G01475404

Courtesy of AMERICAN HONDA MOTOR CO., INC.
