Charging System Indicator Test

For charging system indicator test, see Fig 1.

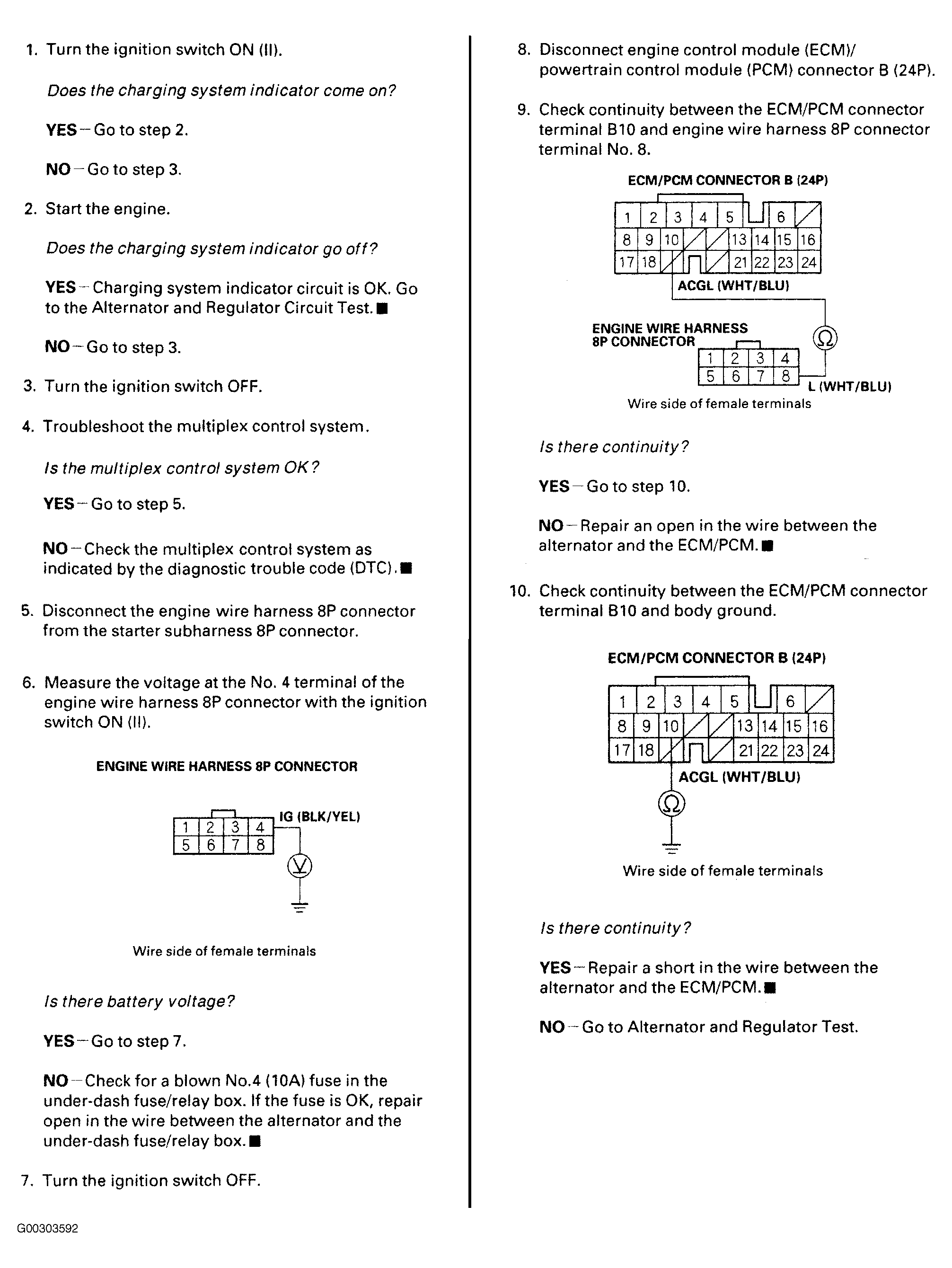

Fig 1: Charging System Indicator Test

G00303592

Courtesy of AMERICAN HONDA MOTOR CO., INC.
