Cruise Control Actuator Test

Disconnect the 4P connector (A) from the cruise control actuator (B).

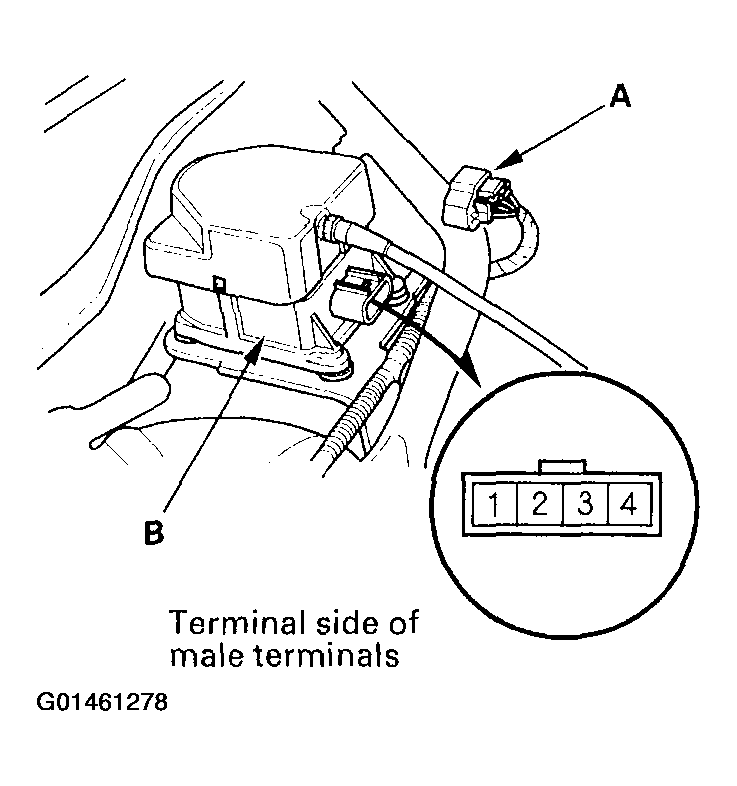

Fig 1: Disconnecting 4-Pin Connector From Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cover (A), and check the output linkage (B) for smooth movement

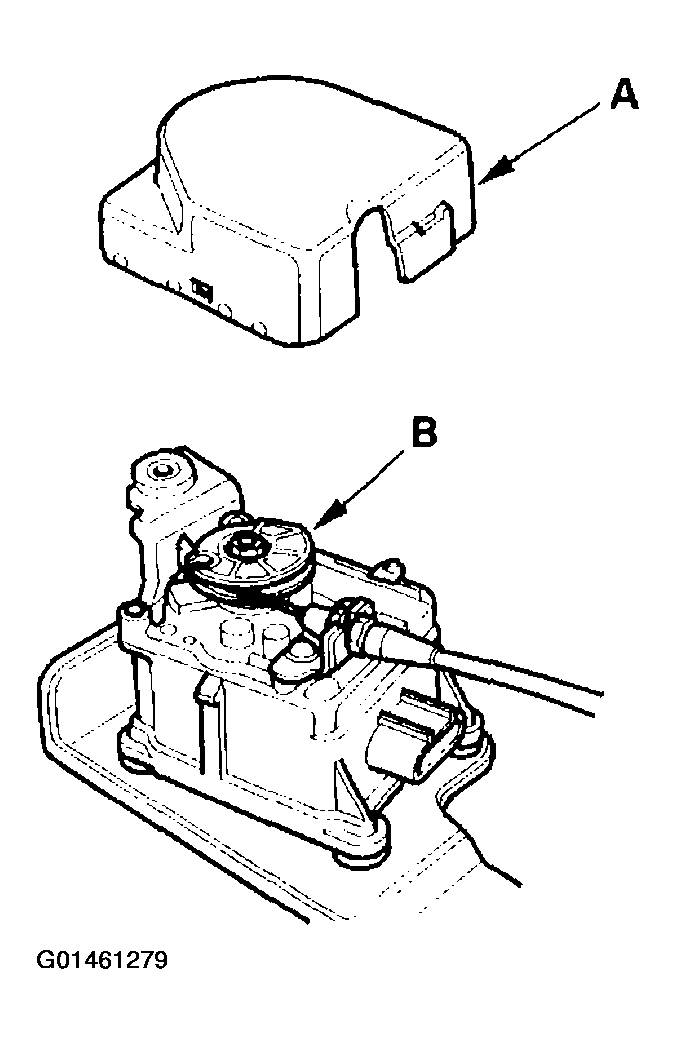

Fig 2: Checking Output Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect battery power to the No. 2 terminal and ground to the No. 1 terminal.
Check for a clicking sound from the magnetic clutch. The output linkage should be locked.
If the output linkage is not locked, replace the cruise control actuator assembly.
Check the operation of the cruise control actuator motor in each output linkage position according to the table. You should be able to hear the motor.

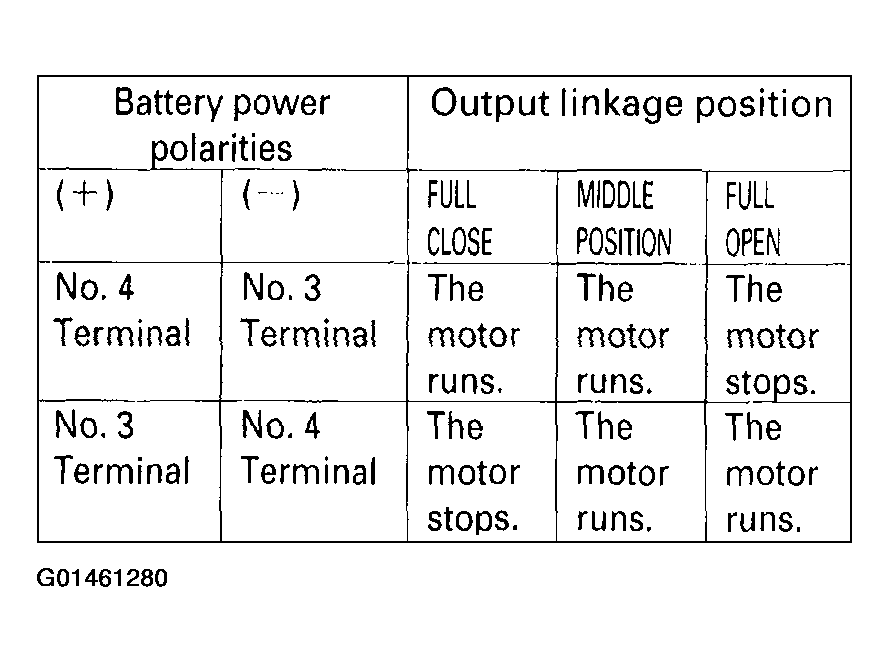

Fig 3: Checking Operation Of The Cruise Control Actuator Motor In Each Output Linkage Position (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

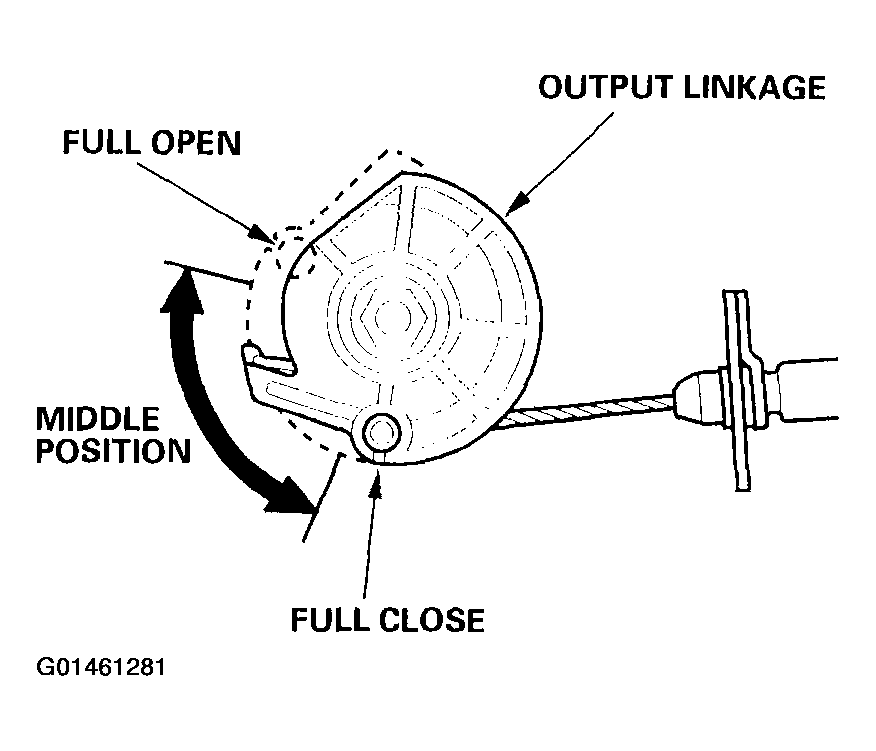

Fig 4: Checking Operation Of The Cruise Control Actuator Motor In Each Output Linkage Position (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the cruise control actuator motor does not operate as specified, replace the cruise control actuator assembly.
