Air Mix Control Motor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the duct (A).

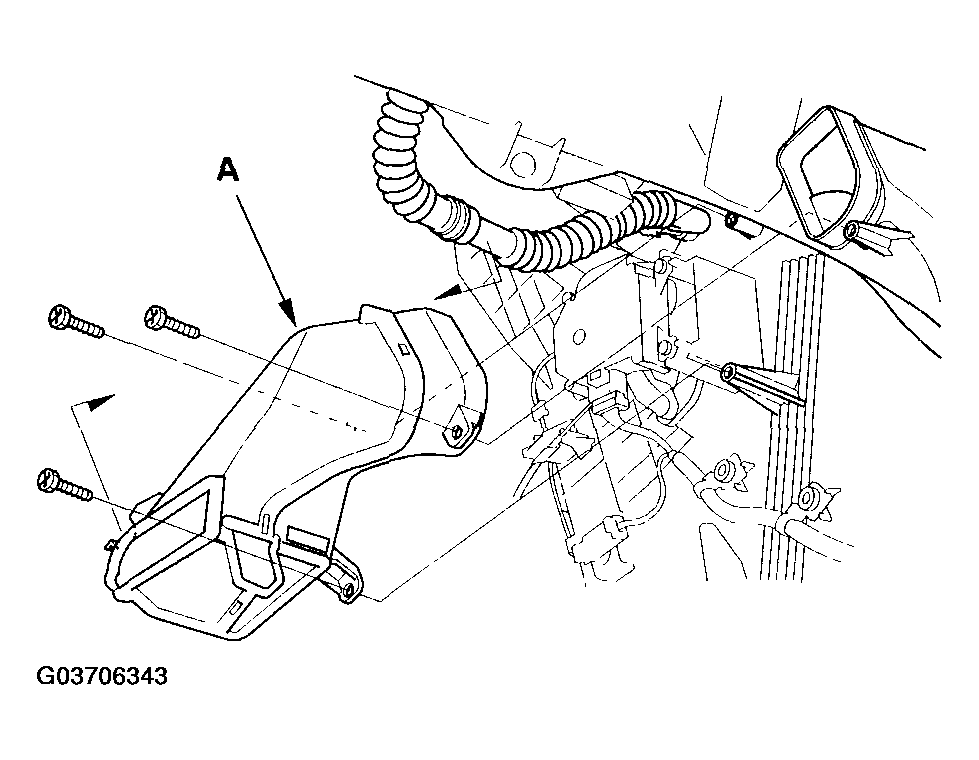

    Fig 1: Removing Self-Tapping Screws And Duct
    G03706343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 7P connector (A) from the air mix control motor (B). Remove the self-tapping screws and the air mix control motor from the heater unit.

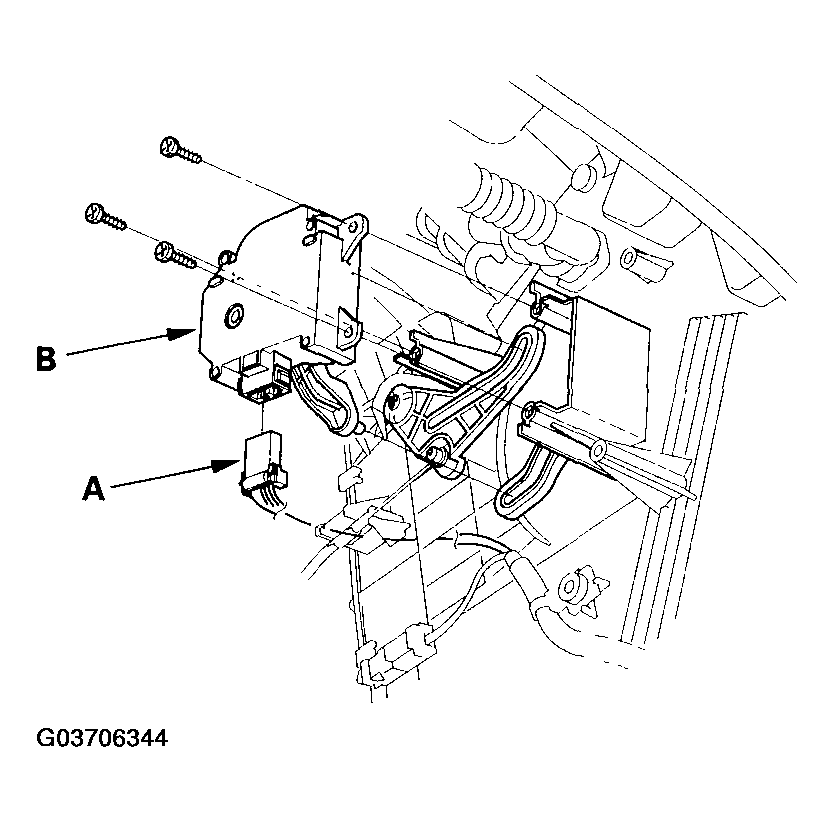

    Fig 2: Disconnecting 7P Connector From Air Mix Control Motor
    G03706344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
