Heater Fan Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between the terminals in each switch position according to the table.

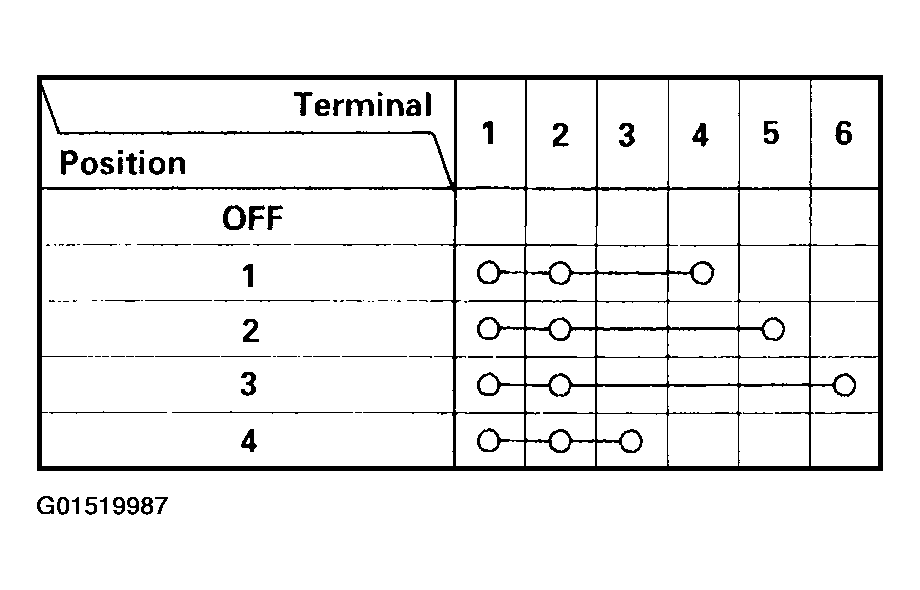

Fig 1: Checking Continuity Between Terminals In Each Switch Position Table
G01519987Courtesy of AMERICAN HONDA MOTOR CO., INC.

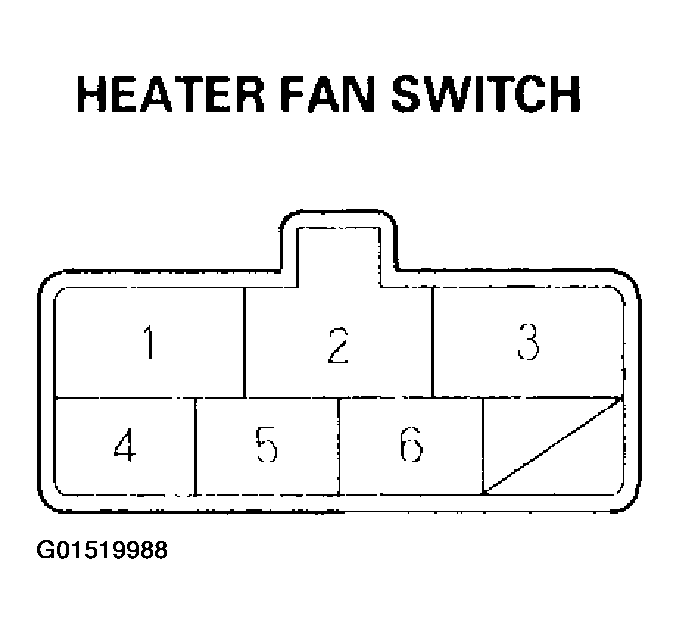

Fig 2: Identifying Heater Fan Switch Connector
G01519988Courtesy of AMERICAN HONDA MOTOR CO., INC.
