Heater Control Panel Removal and Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center panel with the heater control panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the heater control panel (A) from the center panel (B).

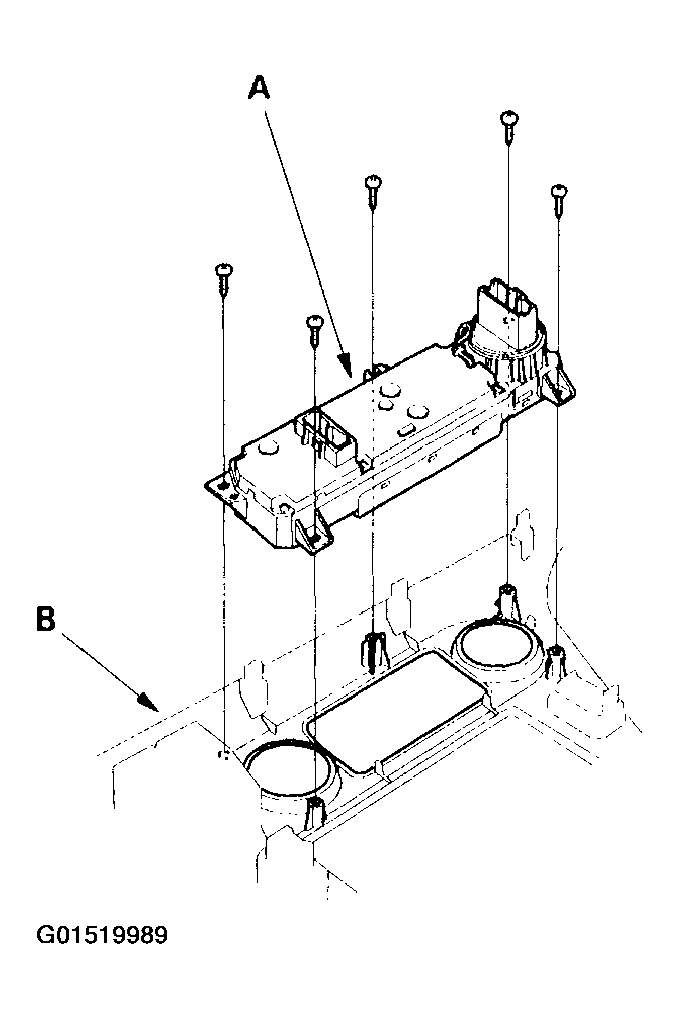

    Fig 1: Removing Self-Tapping Screws & Heater Control Panel
    G01519989Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see whether it works properly.
  4. Run the self-diagnosis function to confirm that there are no problems in the system (see General Troubleshooting Information  ).
