Tailgate Lock Knob Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE ).
  2. Disconnect the 3P connector (A) from the actuator (B).

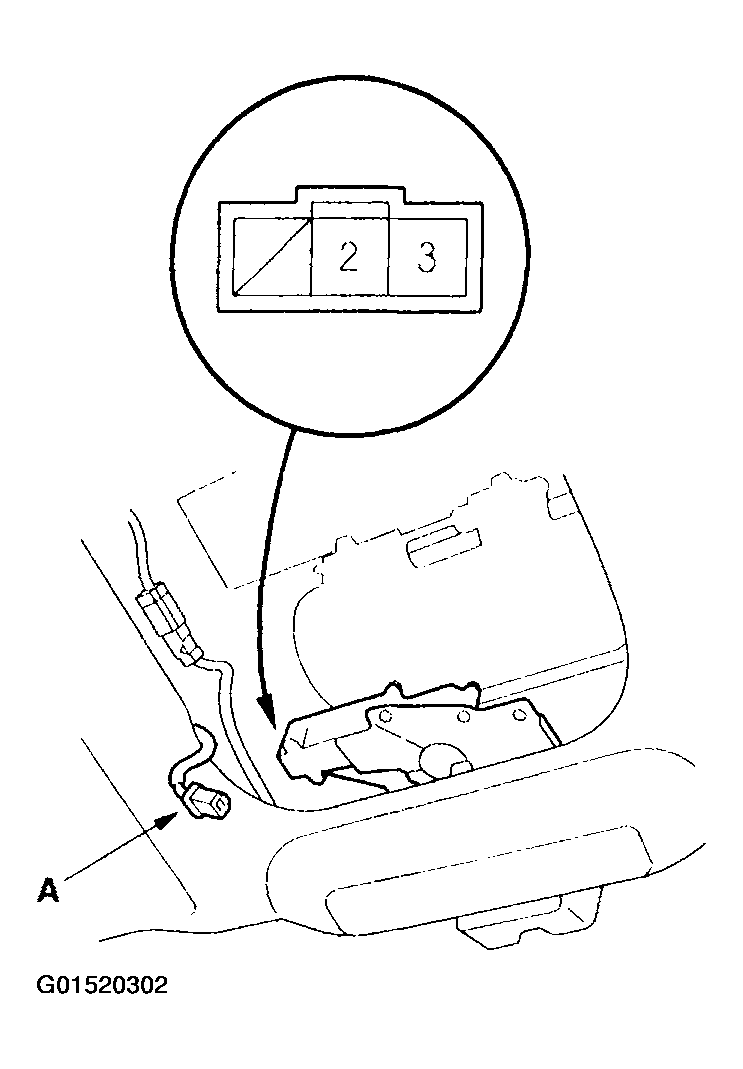

    Fig 1: Disconnecting 3P Connector From Actuator
    G01520302Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the 2 and 3 terminals in each switch position.
    • There should be continuity with the knob switch in UNLOCK.
    • There should be no continuity with the knob switch in LOCK.
  4. If the continuity is not as specified, replace the switch.
