Hood Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the 2P connector from the hood switch.

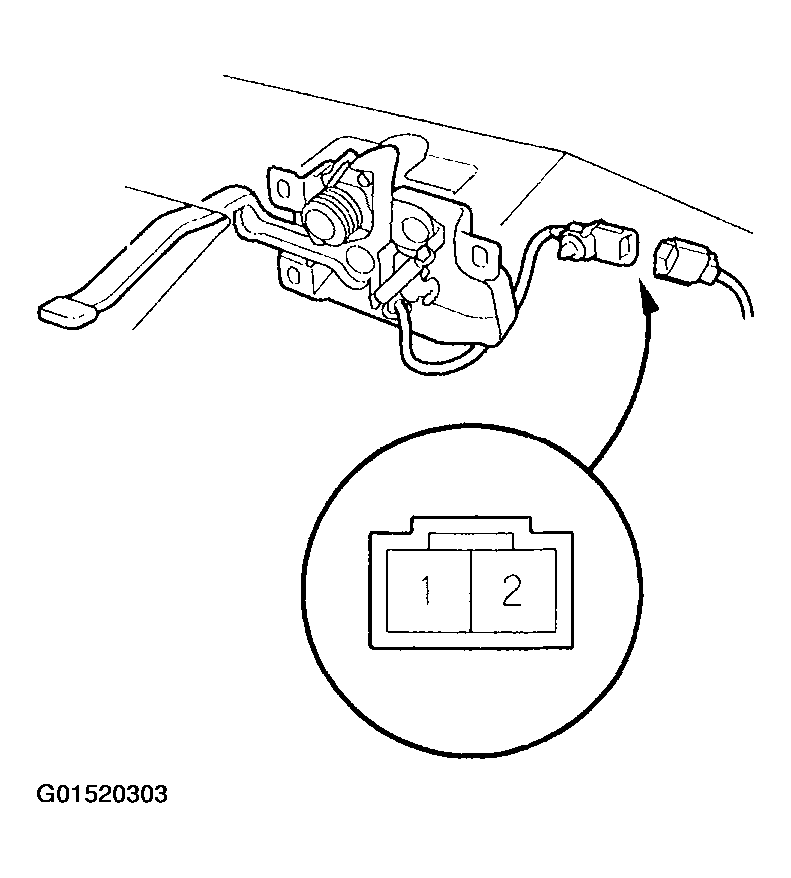

    Fig 1: Disconnecting 2P Connector From Hood Switch
    G01520303Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 2 terminals when the hood is opened (lever released).
    • There should be no continuity between the No. 1 and No. 2 terminals when the hood is closed (lever pushed down).
  4. If the continuity is not as specified, replace the switch.
