Door Lock Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner door handle (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the two screws (A), then remove the door lock switch (B).

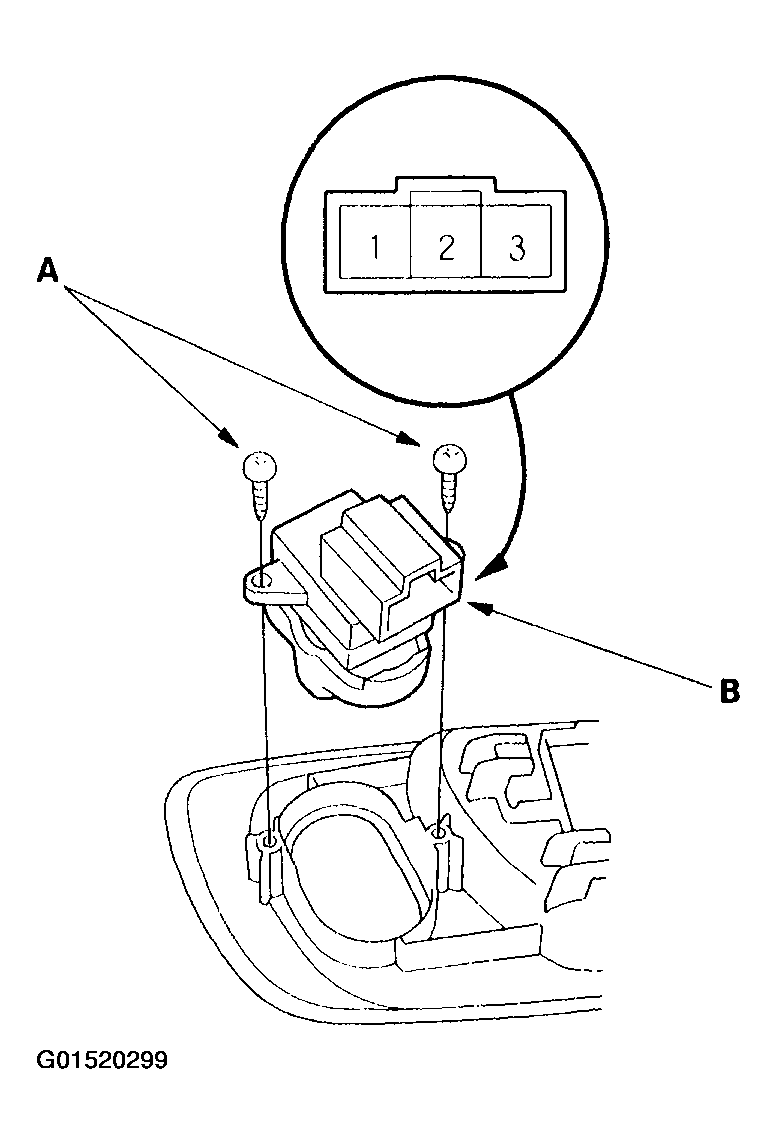

    Fig 1: Removing Screws & Removing Door Lock Switch
    G01520299Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 2 terminals in each switch position.
    • There should be no continuity with the door lock switch in neutral or LOCK.
    • There should be continuity with the door lock switch in UNLOCK.
  4. Check for continuity between the No. 2 and No. 3 terminals in each switch position.
    • There should be continuity with the door lock switch in UNLOCK.
    • There should be no continuity with the door lock switch in neutral or LOCK.
  5. If the continuity is not as specified, replace the switch.
