Oil Pressure Switch Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

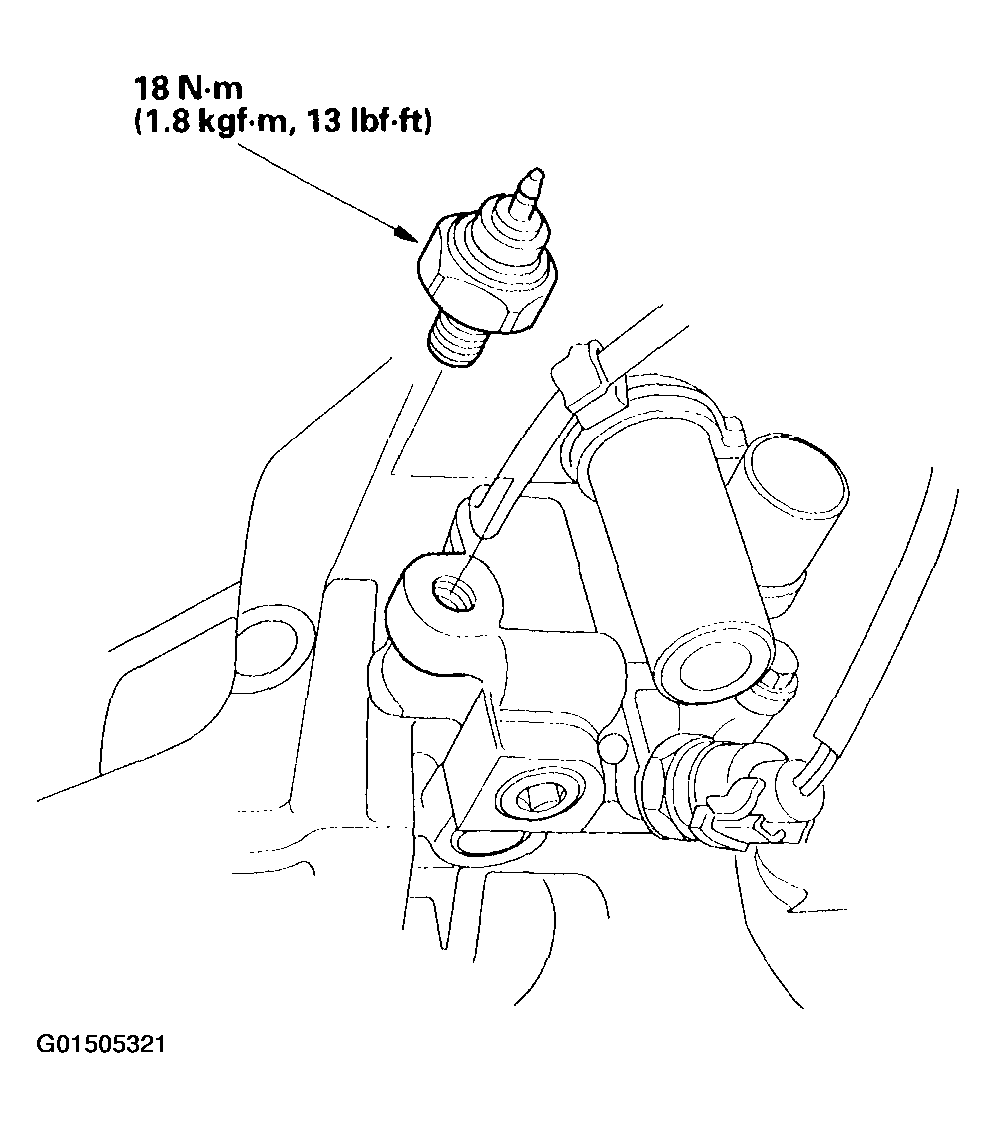

    Fig 1: Disconnecting Oil Pressure Switch Connector
    G01505321Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply liquid gasket to the oil pressure switch, then install the oil pressure switch.
