Cruise Control Actuator Cable Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the actuator cable (A) moves smoothly with no binding or sticking.

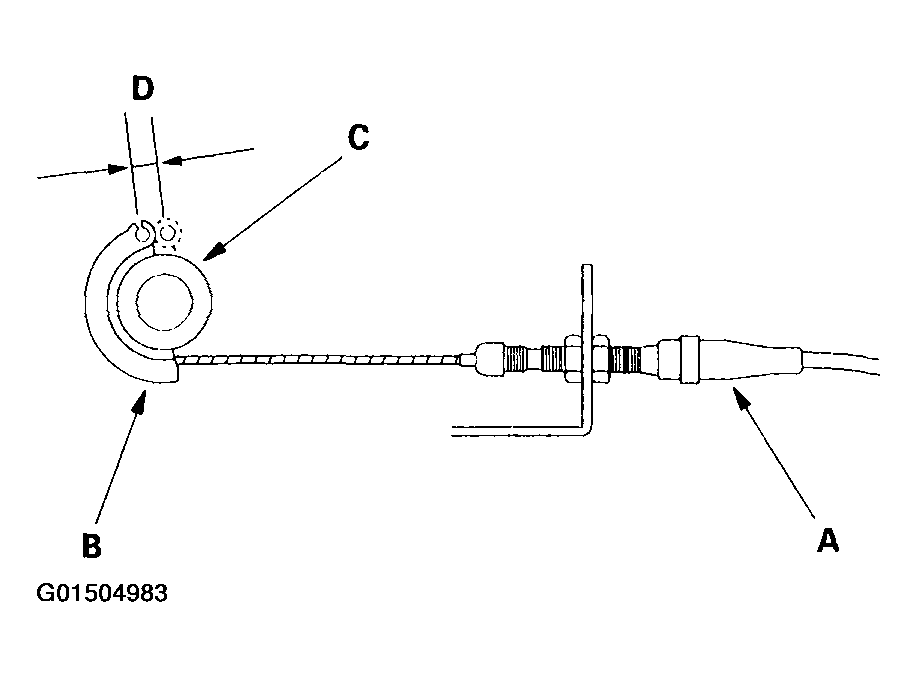

    Fig 1: Checking That The Actuator Cable
    G01504983Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Start the engine, and turn the main switch ON. Hold the engine at 3,000 rpm with no load in Park or Neutral until the radiator fan comes on, then let it idle.
  3. Measure the amount of movement of the output linkage (B) until the engine speed starts to increase. At first, the output linkage should be located at the fully closed position (C). The free play (D) should be 3.75+/-0.5 mm (0.15+/-0.02 in.).
  4. If the free play is not within specification, move the cable to the point where the engine speed starts to increase, and tighten the locknut (A) and adjusting nut (B).

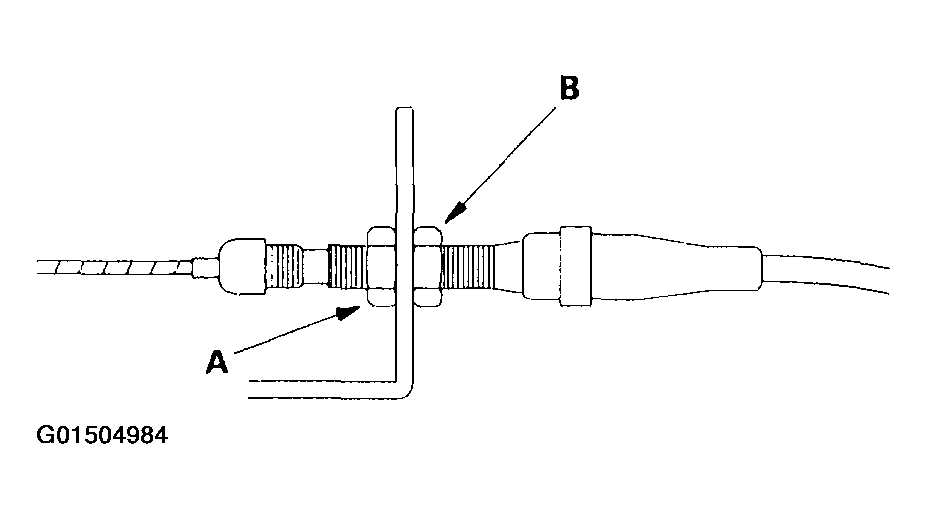

    Fig 2: Tightening The Locknut & Adjusting Nut
    G01504984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Turn the adjusting nut (B) until it is 3.75+/-0.5 mm (0.15+/-0.02 in.) away from the bracket (C).

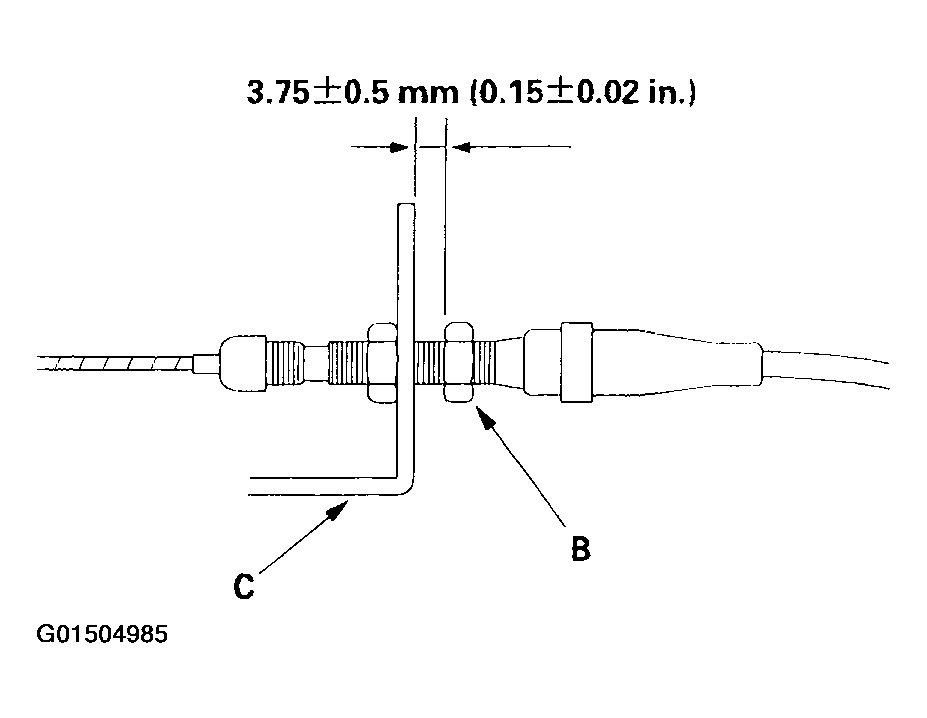

    Fig 3: Turning The Adjusting Nut
    G01504985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Pull the cable so that the adjusting nut (B) touches the bracket, and tighten the locknut (A).

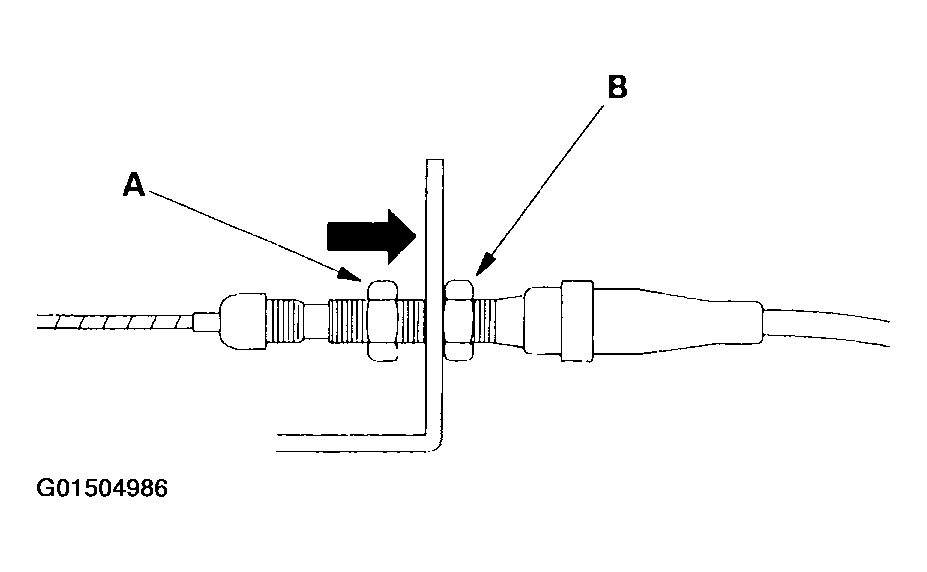

    Fig 4: Pulling The Cable So That The Adjusting Nut Touches The Bracket
    G01504986Courtesy of AMERICAN HONDA MOTOR CO., INC.
