DVD Player Unit Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

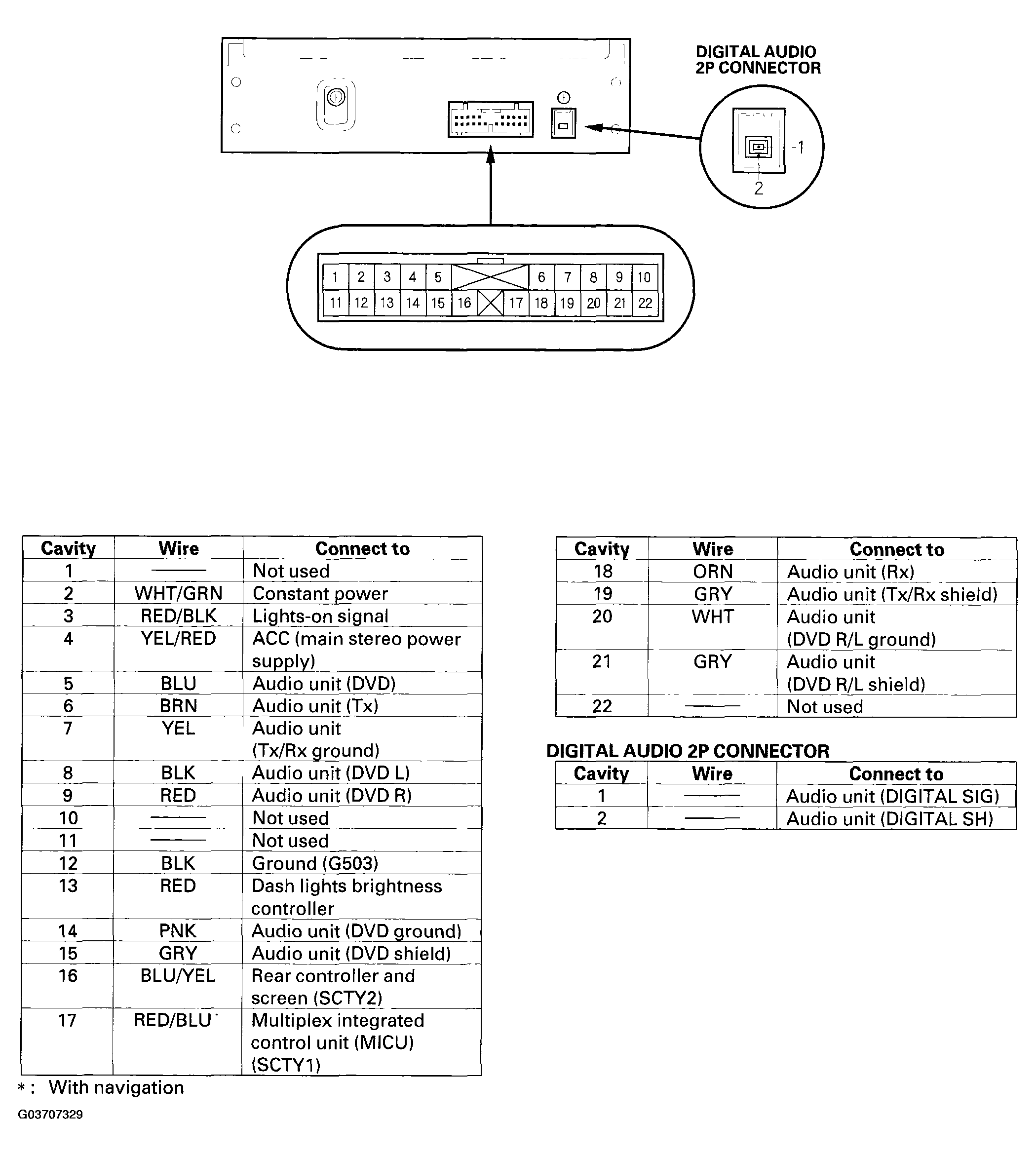

When replacing a DVD player unit connector, match the wires to the cavities shown in Fig 1 .

Fig 1: Identifying DVD Player Unit Connector For Inputs And Outputs
G03707329Courtesy of AMERICAN HONDA MOTOR CO., INC.
