DVD Player Unit Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
If a disc is loaded remove it before continuing.

Remove the center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).

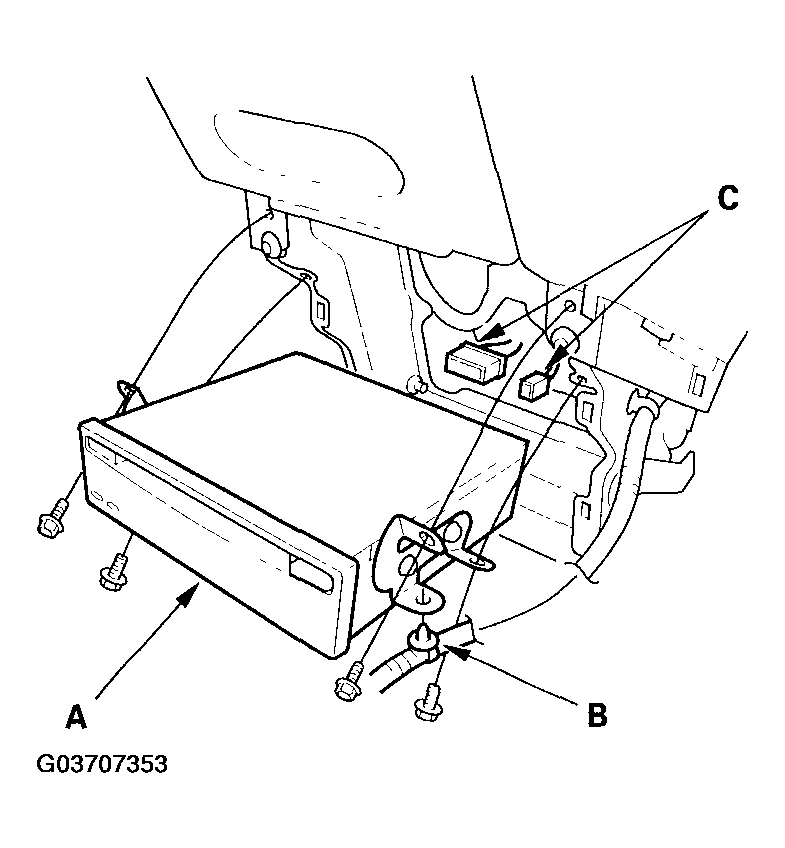

Remove the screws and pull out the DVD player unit (A).

Fig 1: Pulling Out DVD Player Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the wire harness clip (B), then disconnect the 22P connector and digital audio 2P connector (C) from the DVD player unit.

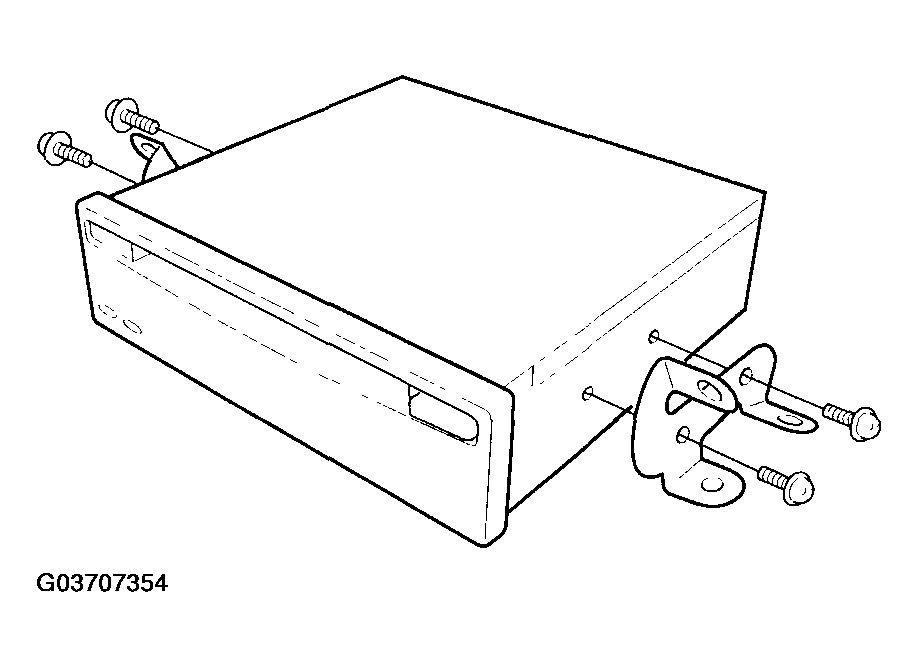

Remove the four mounting screws, then remove the bracket.

Fig 2: Removing Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and make sure the DVD player unit connectors are plugged in properly. Then test the DVD player unit operation.
