Continuously Variable Automatic Transmission (CVT)
>>
CVT
>>
System Description
>>
Circuit Diagram
Circuit Diagram

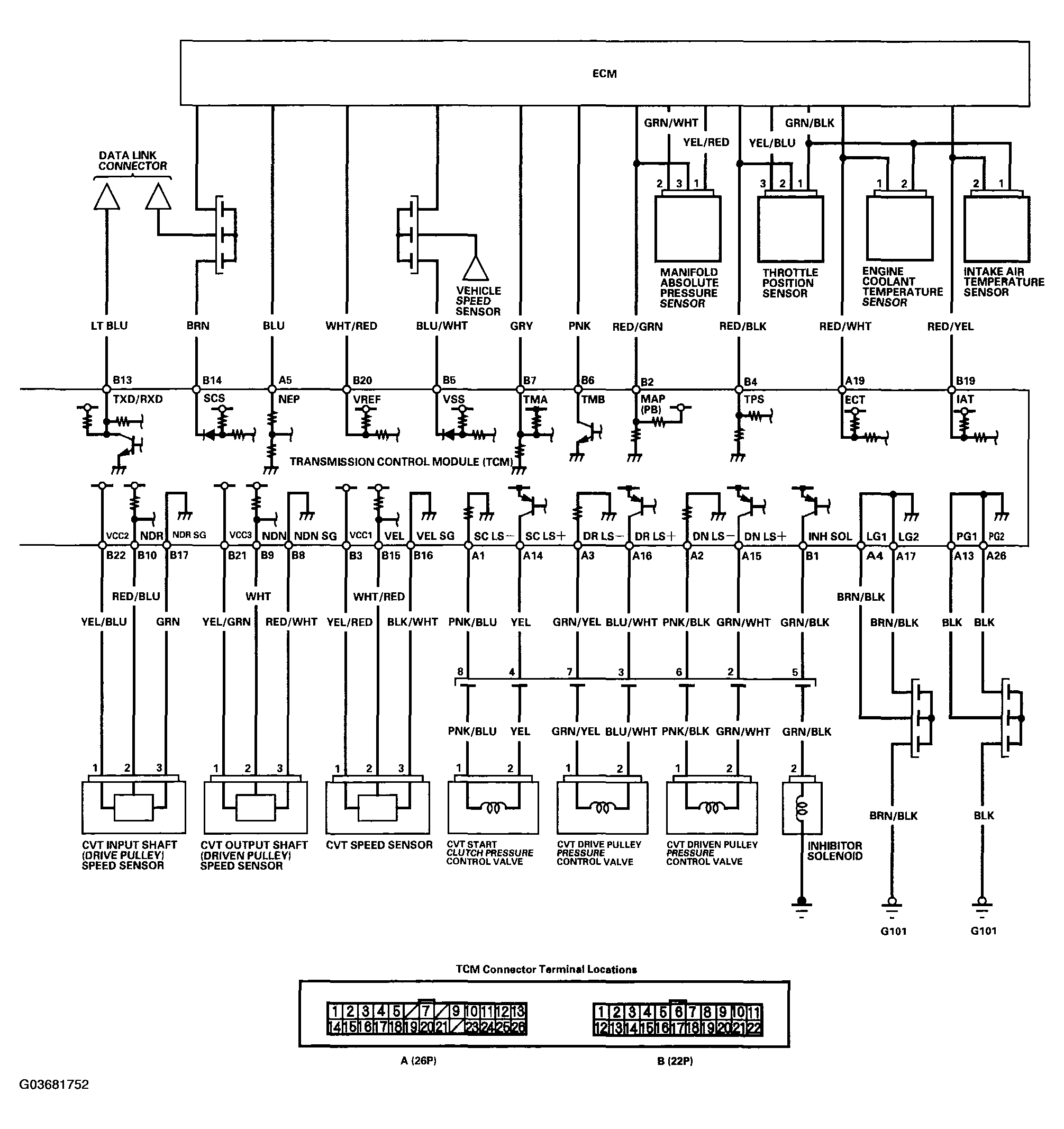

Fig 1: CVT Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

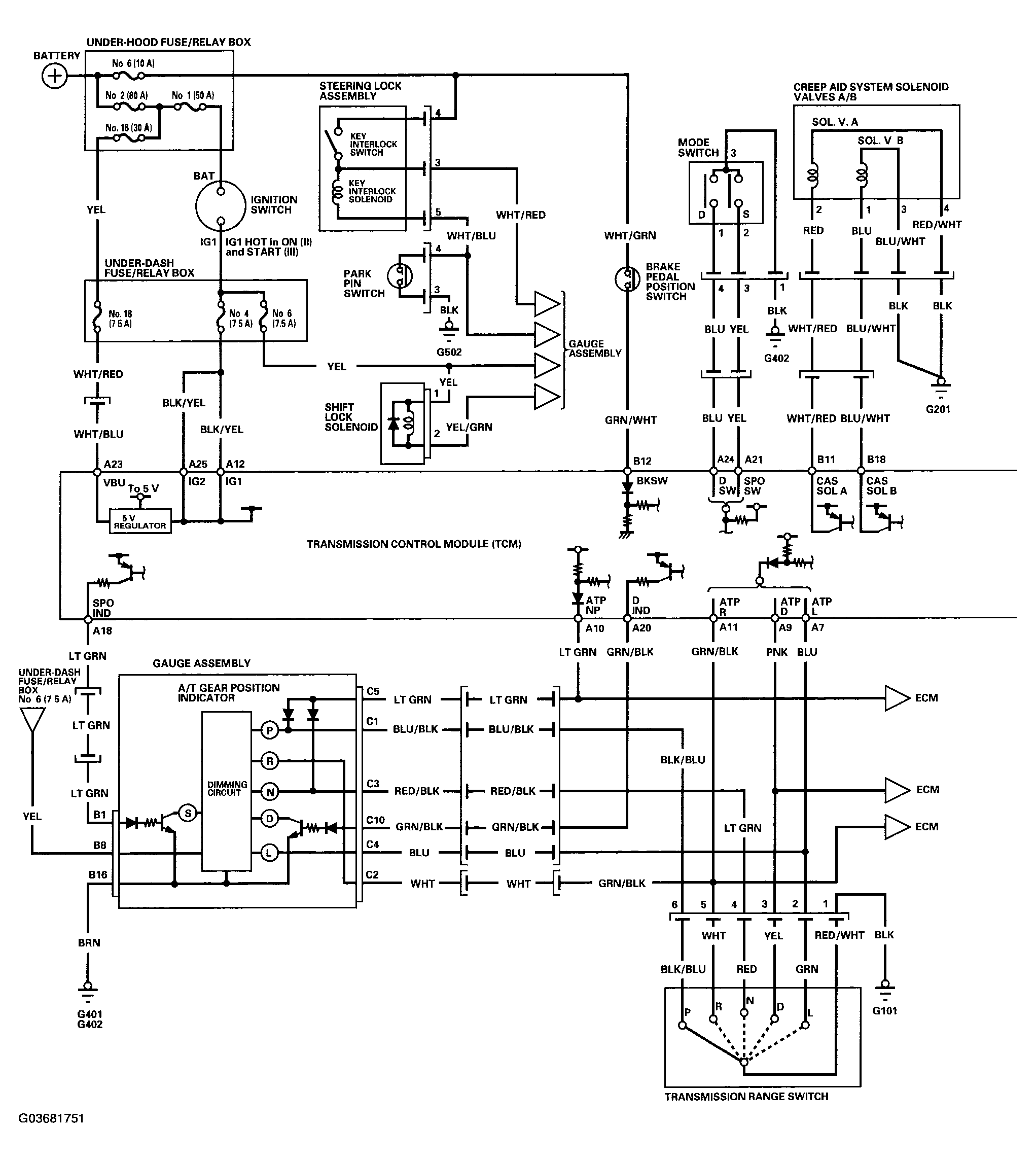

Fig 2: CVT Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
