2004-2006 Models

  1. Remove the lower valve body (see LOWER VALVE BODY ASSEMBLY REPLACEMENT ).
  2. Disconnect the CVT start clutch pressure control valve connector (A).

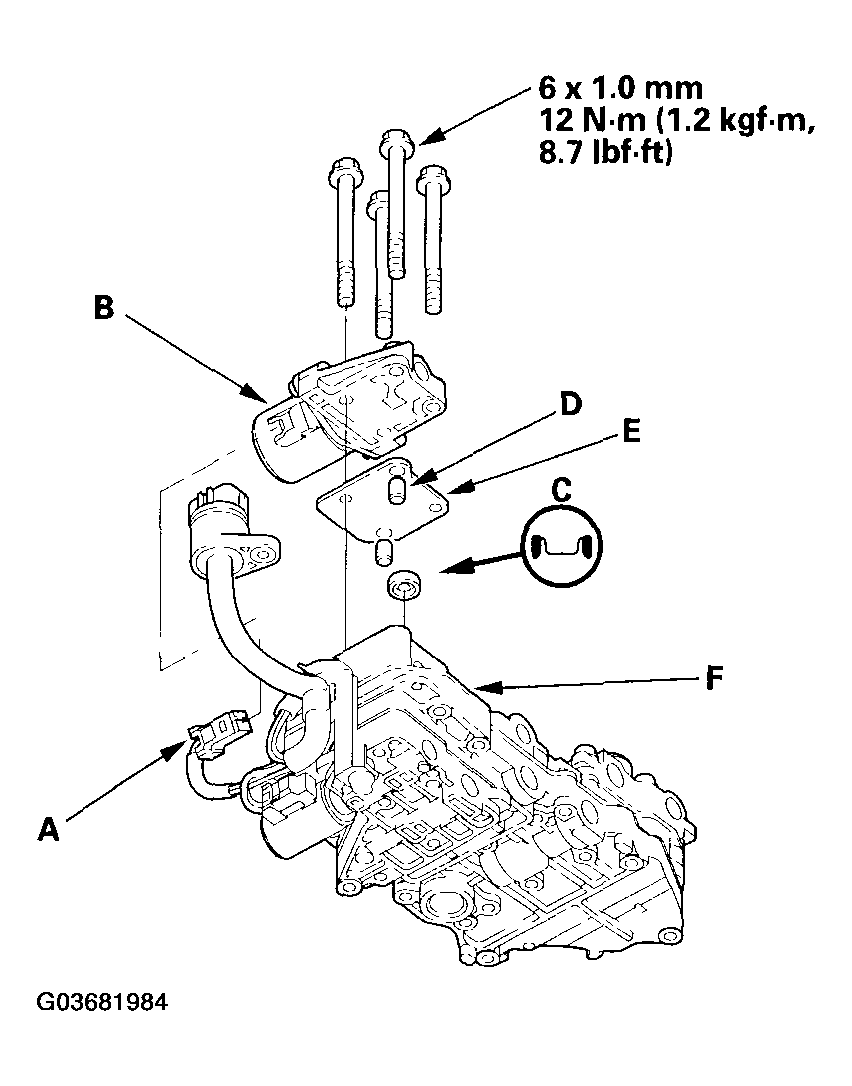

    Fig 1: Disconnecting CVT Start Clutch Pressure Control Valve Connector And Torque Specifications
    G03681984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the CVT start clutch pressure control valve (B).
  4. Check that the filter (C) is in good condition, replace it if it is clogged or damaged.
  5. Install the new CVT start clutch pressure control valve with the dowel pins (D) and separator plate (E) on the lower valve body (F).
  6. Connect the CVT start clutch pressure control valve connector.
  7. Install the lower valve body (see LOWER VALVE BODY ASSEMBLY REPLACEMENT ).
