2006-09 Model

NOTE: Use new O-rings and gaskets when reassembling.

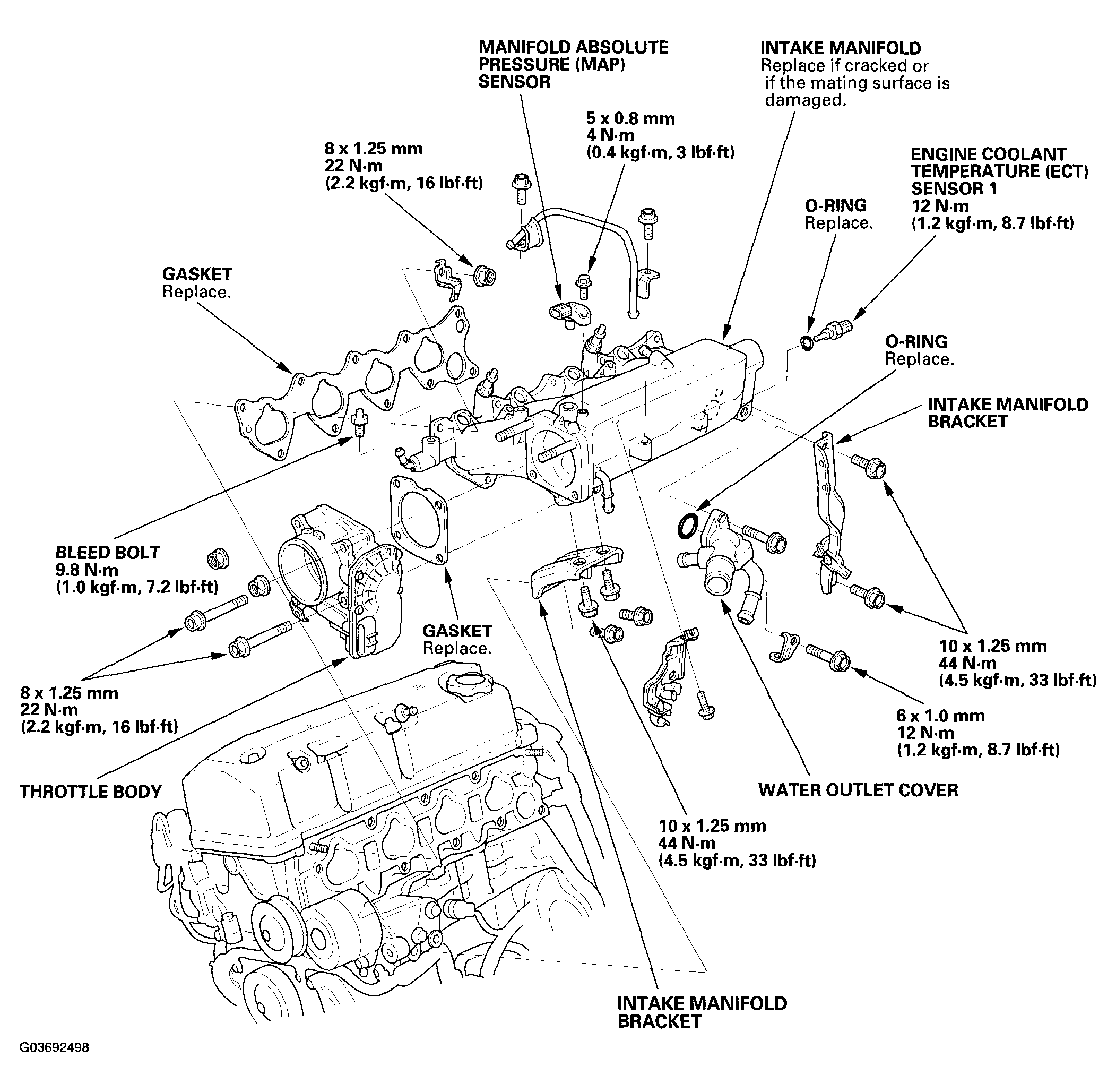

Fig 1: Identifying Intake Manifold Replacement Components - 2006-09 Models With Torque Specifications
G03692498Courtesy of AMERICAN HONDA MOTOR CO., INC.
