Rear Heater-A/C Main Switch Connector End View

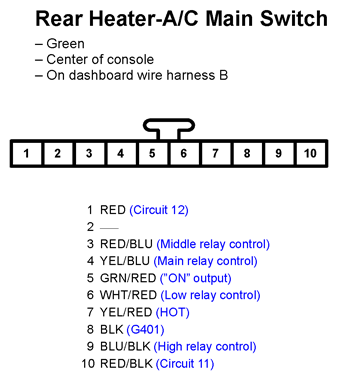

Fig 1: Rear Heater-A/C Main Switch Connector End View

G11250810

Courtesy of AMERICAN HONDA MOTOR CO., INC.
