Power Sliding Door Control Unit, Left (EX, EX-L) Connector End View

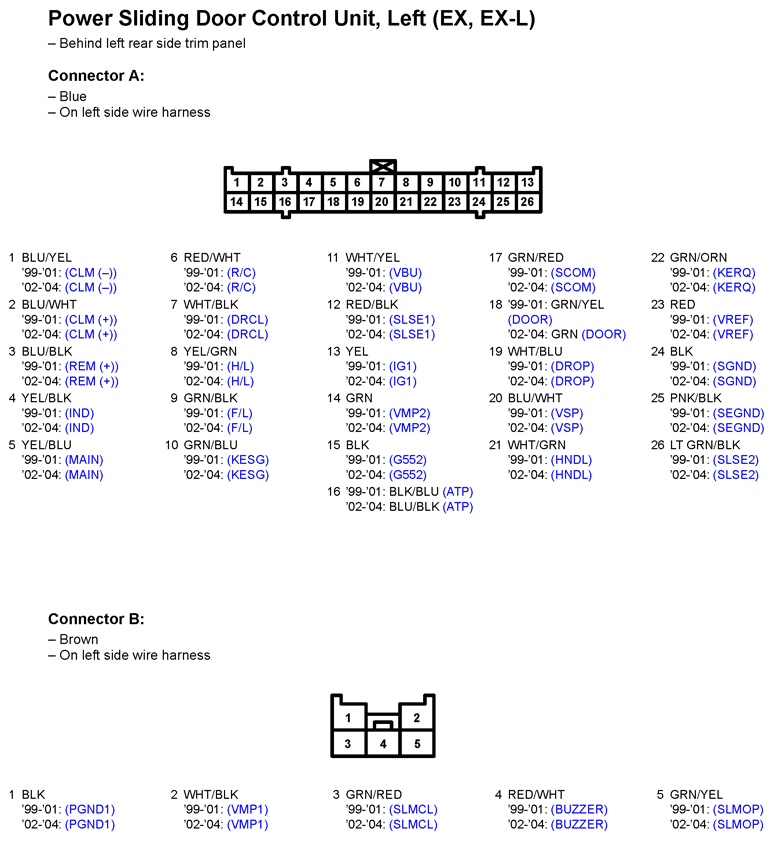

Fig 1: Power Sliding Door Control Unit, Left (EX, EX-L) Connector End View

G11250850

Courtesy of AMERICAN HONDA MOTOR CO., INC.
