Navigation Unit ('00-'04) Connector End View

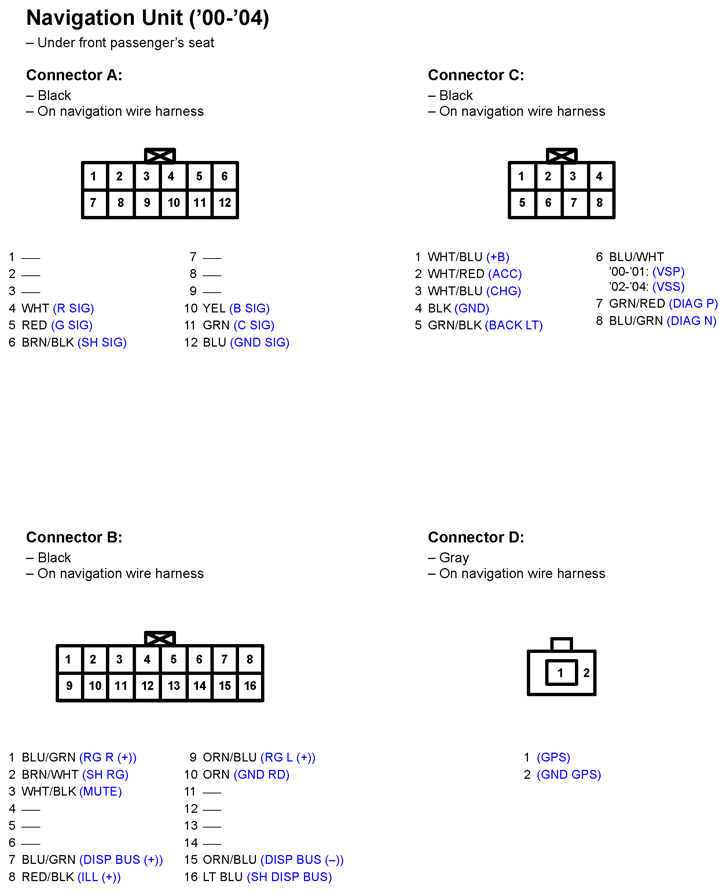

Fig 1: Navigation Unit ('00-'04) Connector End View

G11250878

Courtesy of AMERICAN HONDA MOTOR CO., INC.
