HO2S, Primary Connector End View

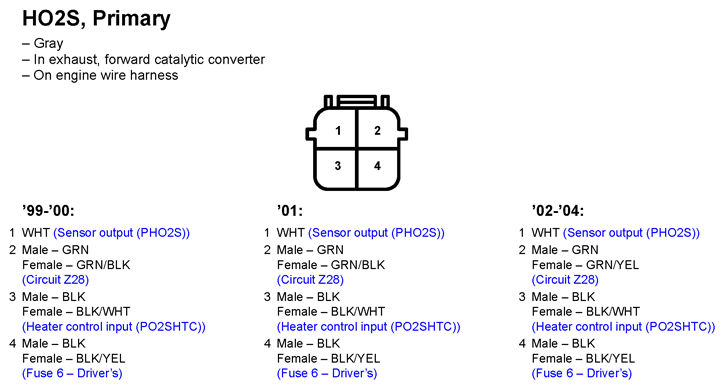

Fig 1: HO2S, Primary Connector End View

G11250746

Courtesy of AMERICAN HONDA MOTOR CO., INC.
