C541 (Navigation) Connector End View

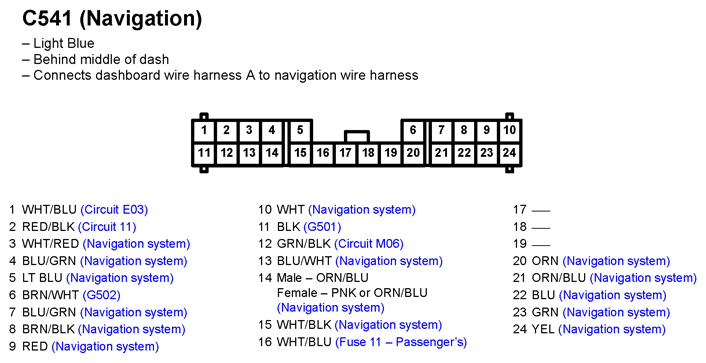

Fig 1: C541 (Navigation) Connector End View

G11250880

Courtesy of AMERICAN HONDA MOTOR CO., INC.
