C501 Connector End View
C501 Connector End View

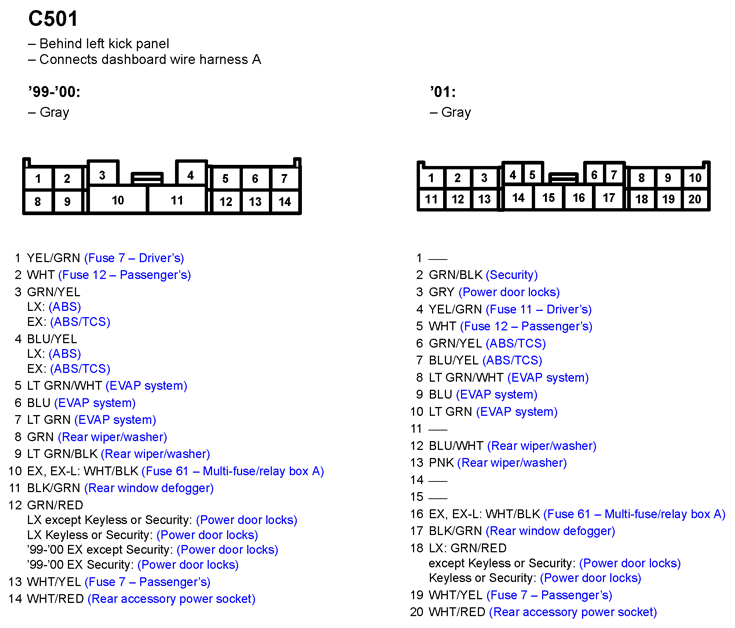

Fig 1: C501 Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

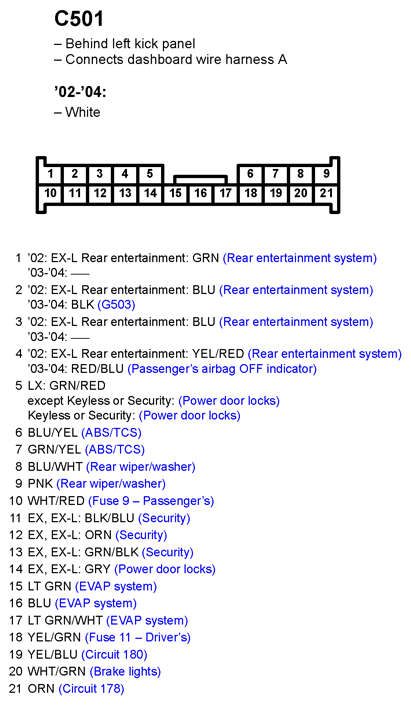

Fig 2: C501 Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
