Rear Controller and Screen Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a rear controller and screen connector, match the wires to the cavities shown in Fig 1 .

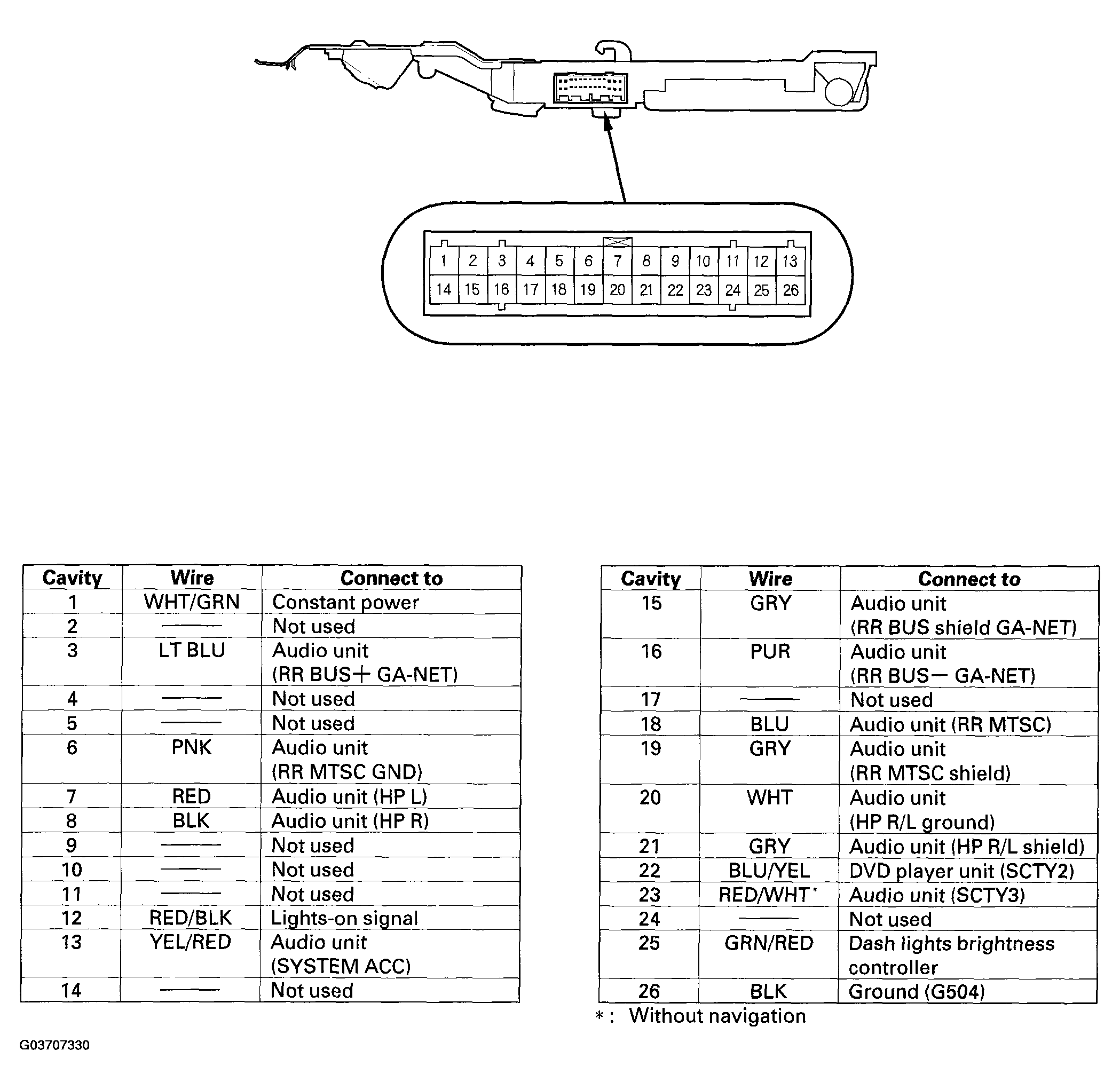

Fig 1: Identifying Rear Controller And Screen Connector
G03707330Courtesy of AMERICAN HONDA MOTOR CO., INC.
