CD Changer Connector for Inputs and Outputs (With Navigation System)

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a CD changer connector, match the wires to the cavities listed in the table shown in Fig 1 .

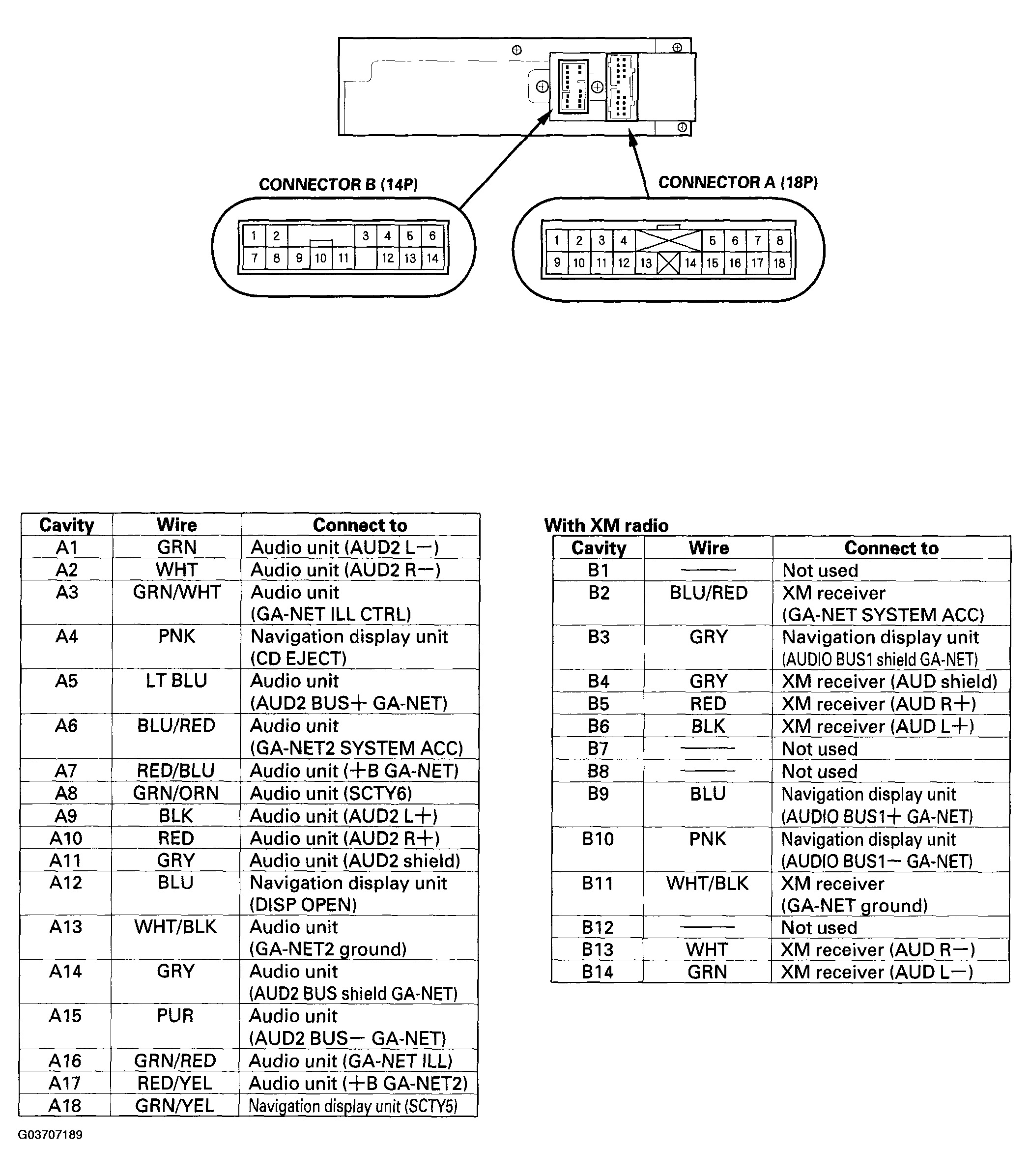

Fig 1: Identifying CD Changer Connector For Inputs And Outputs (With Navigation System)
G03707189Courtesy of AMERICAN HONDA MOTOR CO., INC.
