Active Noise Control unit Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When replacing an active noise control unit connector, match the wires to the cavities listed in the table shown in Fig 1 .

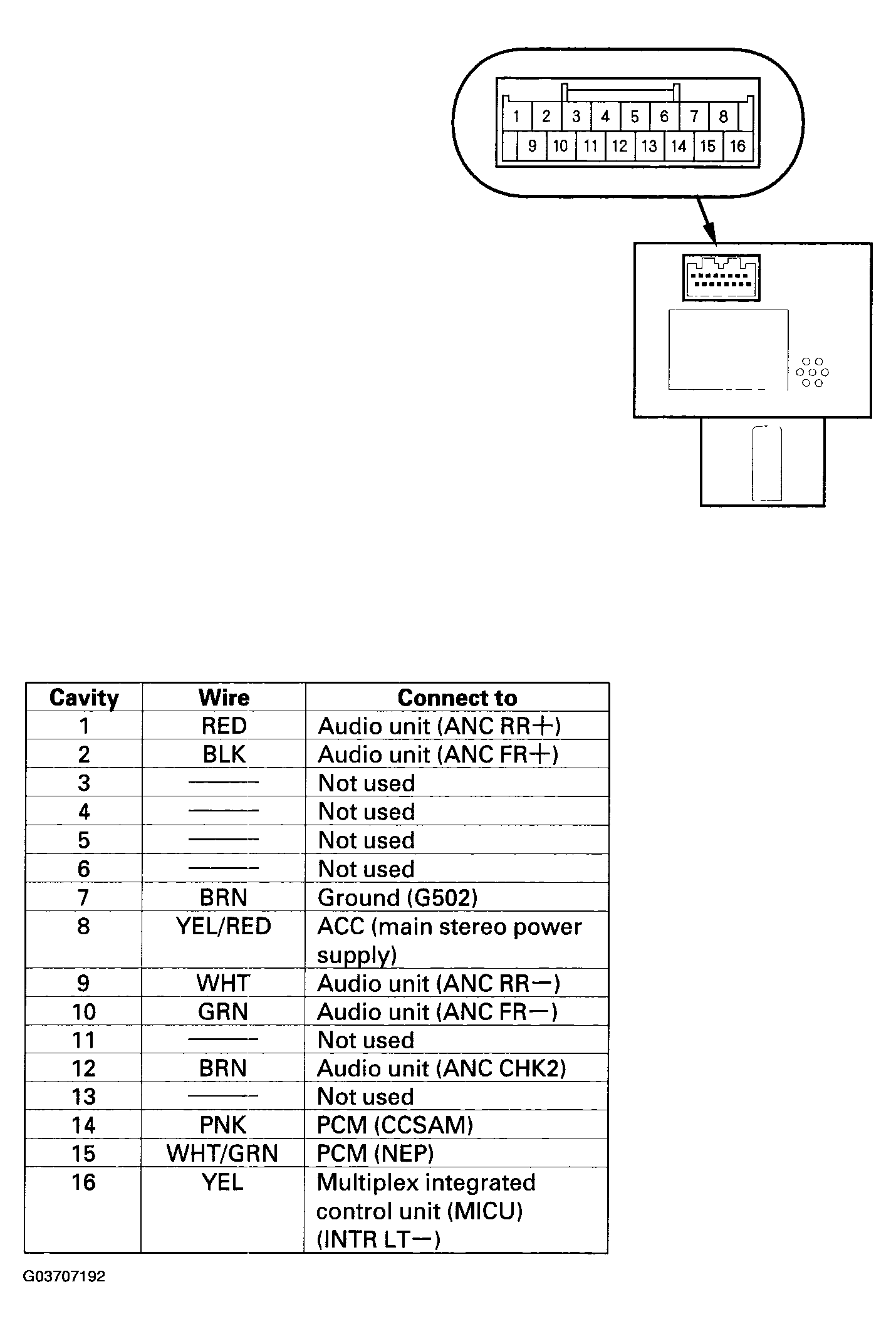

Fig 1: Identifying Active Noise Control Unit Connector For Inputs And Outputs
G03707192Courtesy of AMERICAN HONDA MOTOR CO., INC.
