Fuel Fill Cap Check

Check the fuel fill cap. It must say "If not tightened 3 clicks check engine light may come on."
Is the correct fuel fill cap installed and properly tightened?
1. YES: Go to step 2.
2. NO: Replace or tighten the cap.
Check the fuel fill cap seal.
Is the fuel fill cap seal missing or damaged?
1. YES: Replace the fuel fill cap (gray or black colored cap).
2. NO: The fuel fill cap is OK. Go to step 3.
EVAP Canister Purge Valve Test

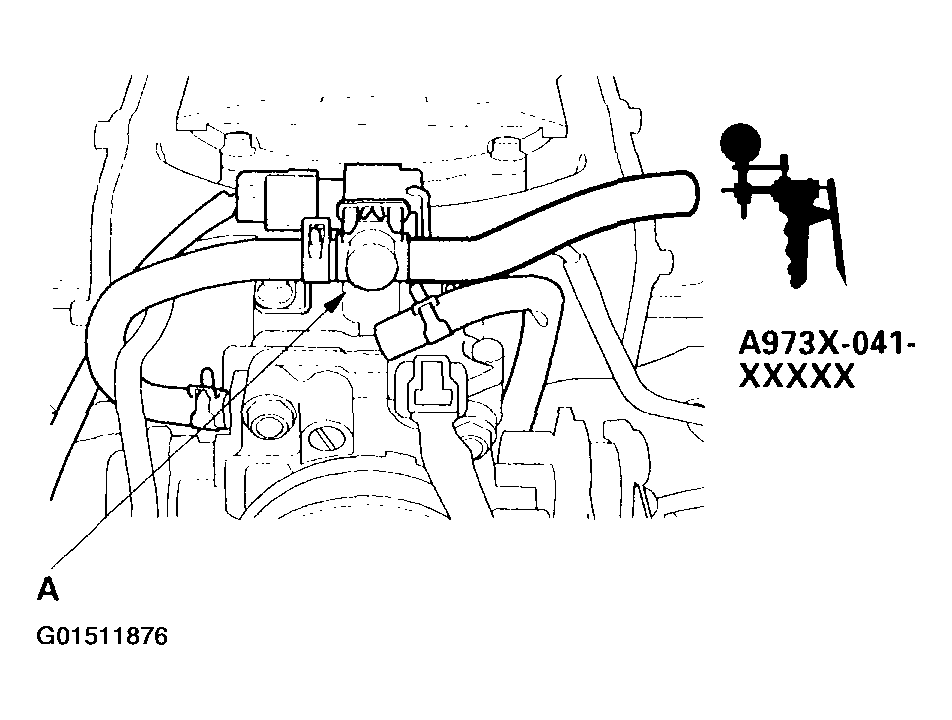

Disconnect the vacuum hose from the EVAP canister purge valve (A), and connect a vacuum pump to the hose.

Fig 1: Disconnecting The Vacuum Hose From The EVAP Canister Purge Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II).
Apply vacuum to the hose.
Does the valve hold vacuum?
1. YES: The EVAP canister purge valve is OK. Go to step 1 under EVAP BYPASS SOLENOID VALVE TEST.
2. NO: Go to step 6.
Turn the ignition switch OFF.
Disconnect the EVAP canister purge valve 2P connector.
Check for continuity between EVAP canister purge valve 2P connector terminal No. 2 and body ground.

Fig 2: Checking For Continuity Between EVAP Canister Purge Valve 2P Connector Terminal No. 2 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES: Go to step 9.
2. NO: Replace the EVAP canister purge valve.
Disconnect PCM connector A (32P).
Check for continuity between EVAP canister purge valve 2P connector terminal No. 2 and body ground.

Fig 3: Checking For Continuity Between EVAP Canister Purge Valve 2P Connector Terminal No. 2 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES: Repair short in the wire between the EVAP canister purge valve and the PCM (A6).
2. NO: Substitute a known-good PCM and recheck (see HOW TO SUBSTITUTE THE PCM FOR TESTING PURPOSE ). If the symptom/indication goes away, replace the original PCM.
