Keyless Receiver Unit (EX, EX-L) Connector End View

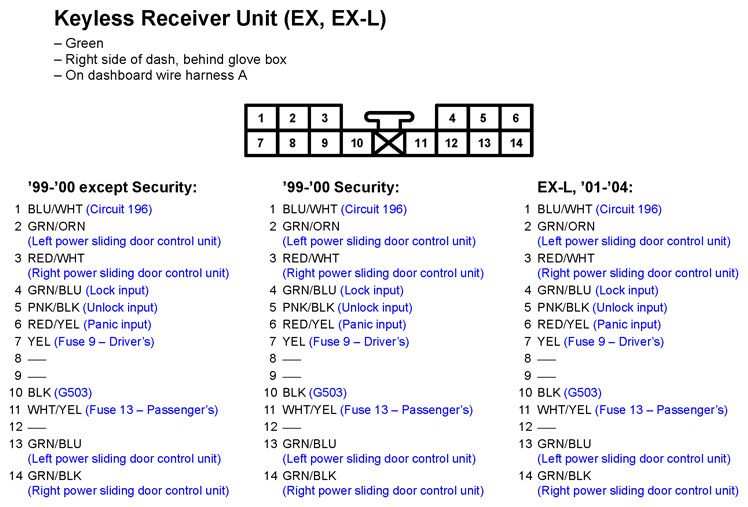

Fig 1: Keyless Receiver Unit (EX, EX-L) Connector End View

G11250822

Courtesy of AMERICAN HONDA MOTOR CO., INC.
