Cruise Control Main Switch/TCS Switch ('03-'04) Connector End View

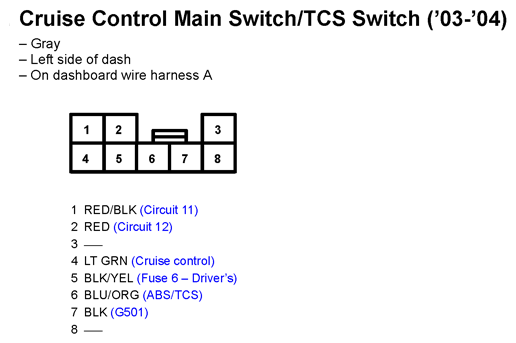

Fig 1: Cruise Control Main Switch/TCS Switch ('03-'04) Connector End View

G11250951

Courtesy of AMERICAN HONDA MOTOR CO., INC.
