BCM Module Inputs and Outputs at Connector B (22P)

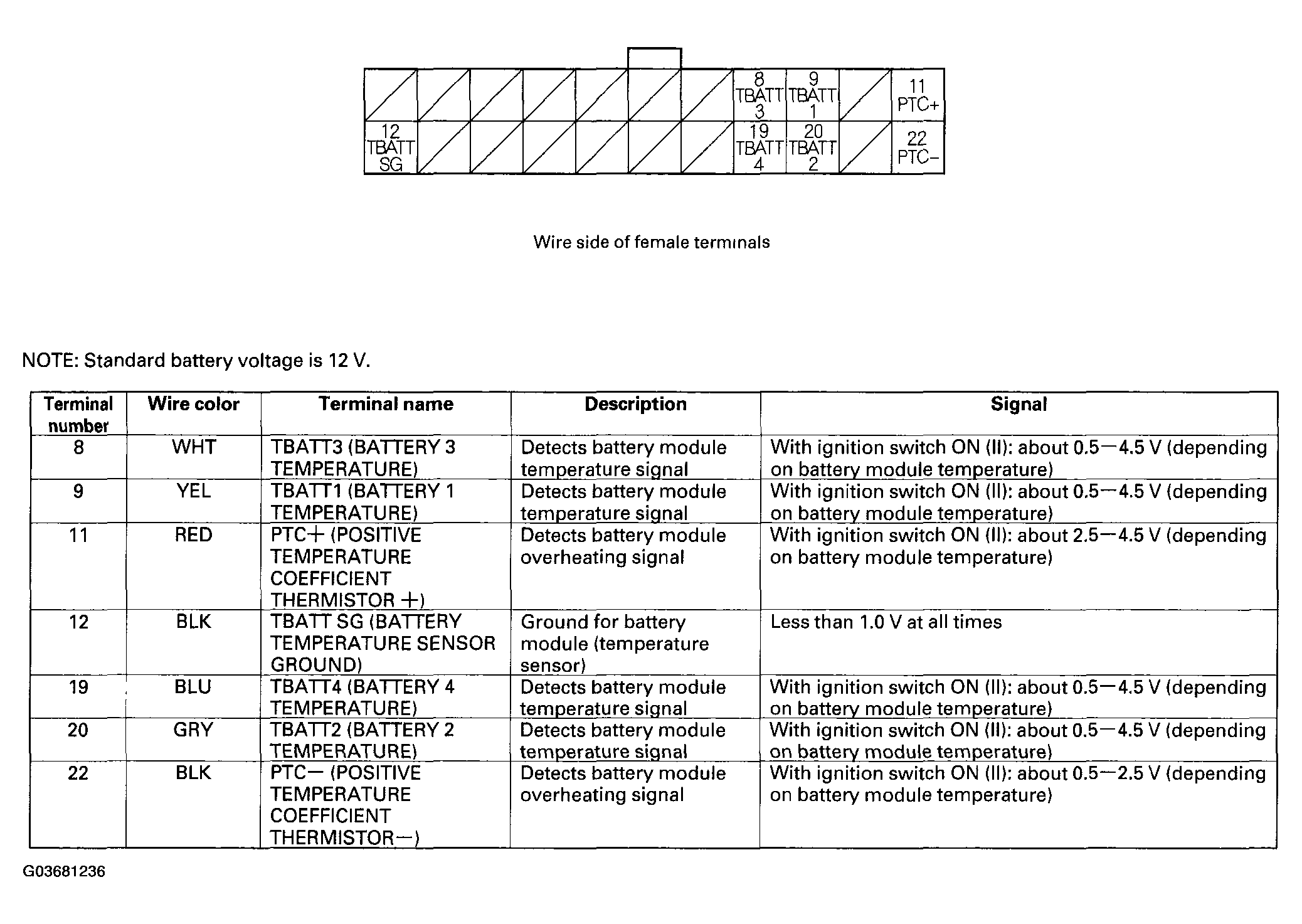

Fig 1: Identifying BCM Module Inputs And Outputs Connector B (22P) Terminals

G03681236

Courtesy of AMERICAN HONDA MOTOR CO., INC.
