BCM Module Inputs and Outputs at Connector A (26P)

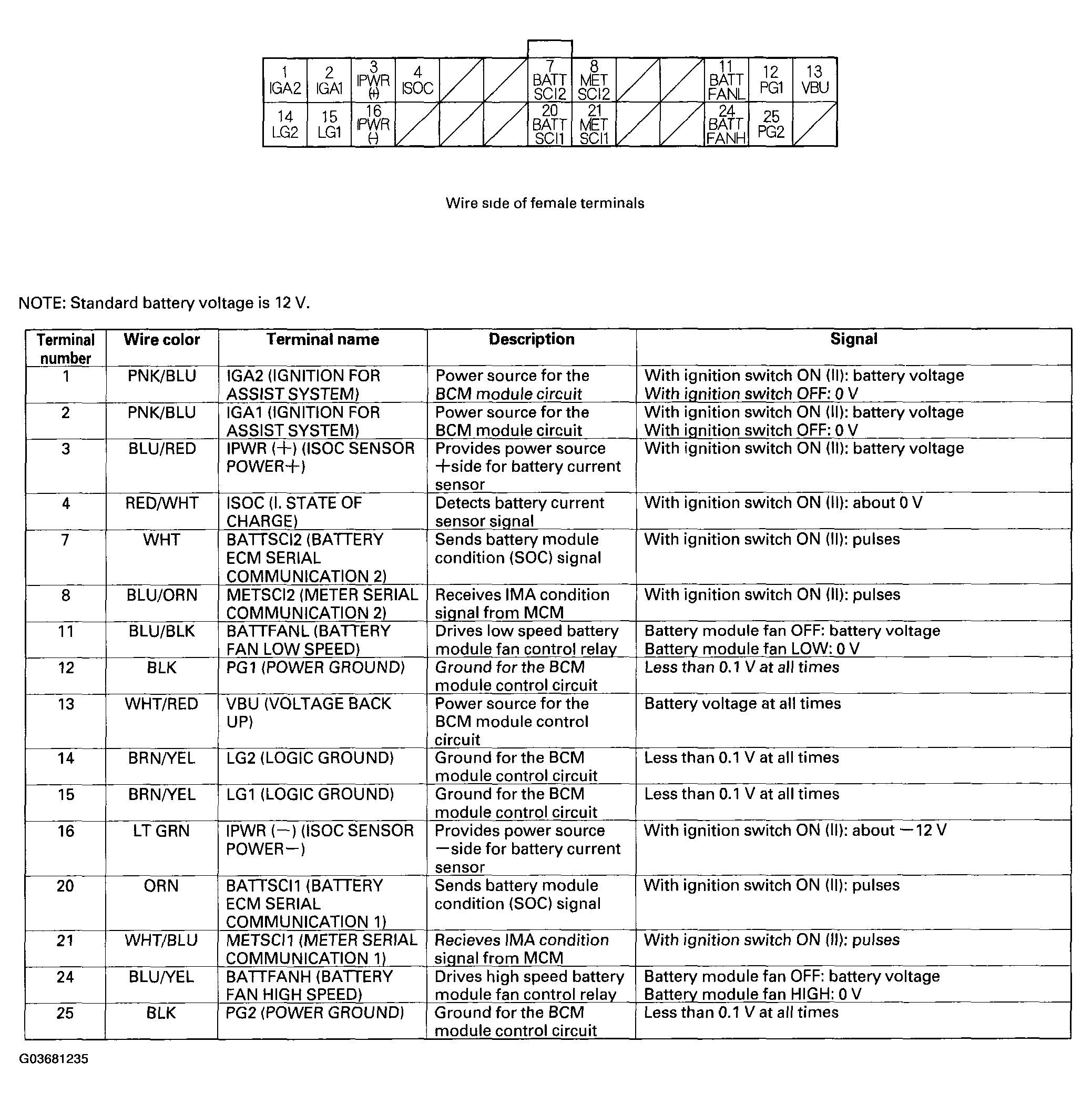

Fig 1: Identifying BCM Module Inputs And Outputs Connector A (26P) Terminals

G03681235

Courtesy of AMERICAN HONDA MOTOR CO., INC.
