Heater Control Panel Removal and Installation
- Remove the instrument panel with the heater control panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION
).

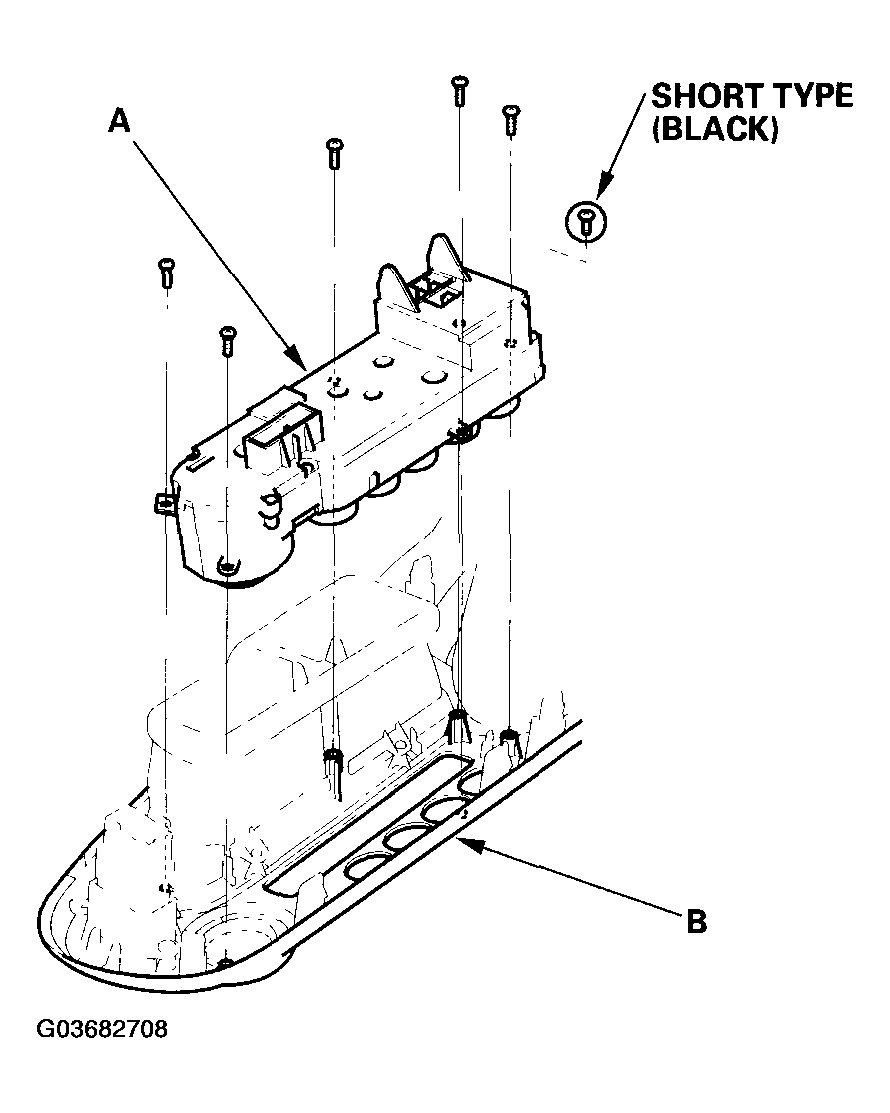

- Remove the self-tapping screws and the heater control panel (A) from the instrument panel (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the control panel in the reverse order of removal, and note these items:
- Be sure to install the short black self-tapping screw in the position shown. If a longer screw is used, it will damage the instrument panel.
- After installation, operate the control panel controls to see whether it works properly.
- Run the self-diagnostic function to comfirm that there are no problems in the system (see
GENERAL TROUBLESHOOTING INFORMATION ).
